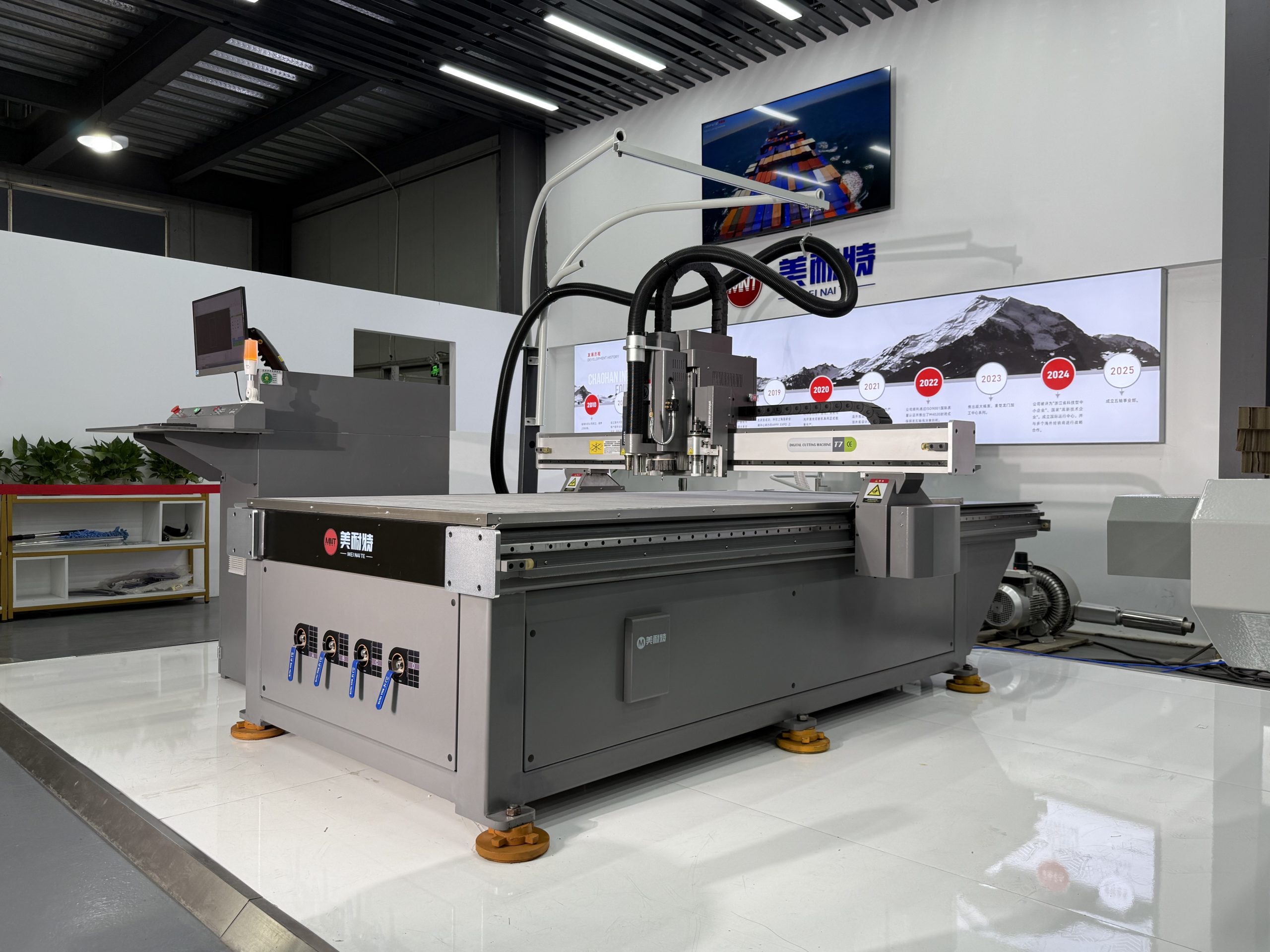

T7-Digital Engraving & Cutting Machine

Price: $19,000

The T7ATC is MNT's latest intelligent CNC equipment integrating engraving and cutting functions with advanced vision positioning. Featuring an inline steel-structure industrial bed and a full-aluminum gantry design, the bed undergoes vibration stress relief treatment before all critical surfaces and mounting holes are precision-machined in a single operation on a high-accuracy gantry mill.

For more information, please contact us

Description

The T7ATC is MNT’s latest intelligent CNC equipment integrating engraving and cutting functions with advanced vision positioning. Featuring an inline steel-structure industrial bed and a full-aluminum gantry design, the bed undergoes vibration stress relief treatment before all critical surfaces and mounting holes are precision-machined in a single operation on a high-accuracy gantry mill.

It is equipped with a high-speed water-cooled spindle, a high-frequency electric oscillating knife, a CCD vision positioning system, and a high-power dust extraction system. Operated via a high-performance motion control system and MNT’s self-developed CAM software, it delivers user-friendly operation, fast processing speeds, high precision, and efficient dust collection.

Application scenarios:

Widely used in advertising signage engraving and print-and-cut applications, it supports cutting a variety of materials such as:KT board、PVC panels、Acrylic、Aluminum、Copper、Aluminum composite panels、Plastics、Carbon fiber composites、Light panels Flexible films、Self-adhesive materials

Features:

  • 1.Robust Construction:
    Inline steel bed with full-aluminum gantry, precision-machined after vibration stress relief for long-term stability and accuracy.
  • 2.Advanced System Integration:
    Combines high-speed water-cooled spindle, electric oscillating knife, CCD vision positioning, and powerful dust extraction in one platform.
  • 3.Intelligent Software & Control:
    Proprietary CAM software and high-performance motion control enable.
  • 4.Precision & Efficiency:
    Delivers fast processing speeds, high precision, and effective dust management.
  • 5.Material & Application Versatility:
    Capable of cutting a wide range of materials for advertising, signage, print-and-cut, and industrial fabrication.

T7ATC Parameter:

Working area 1300mm×2500mm
Spindle power 3.7kw
Frequency 18000rpm/min
Rapid Traverse Speed 90m/min
Vacuum pump power 7.5kw
Position accuracy ±0.05mm
Repeat position accuracy ±0.02mm
Drive motor Servo motor
Voltage AC380V 50Hz
Transmission Rack
N.W. 1500kg

Why choose us?

  1. 100% tungsten carbide raw material.
  2. Good wear and abrasive resistance.
  3. Precision ground and polished for aluminum using milling inserts.
  4. Better cost-effective CNC tools.
  5. R&D and production ability to keep up with market trends.
  6. Technical support ability to solve processing solutions for customers in all aspects.
  7. Adequate stock to ensure fast delivery.
