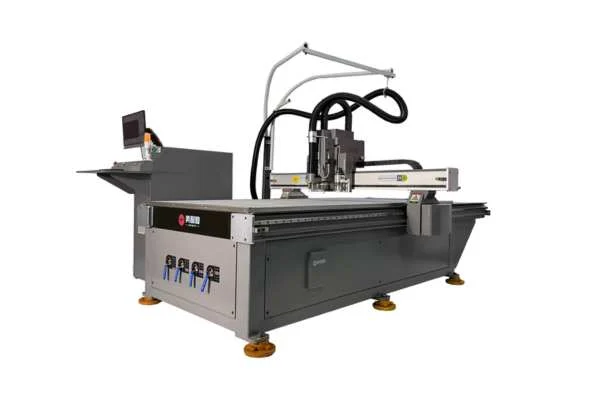

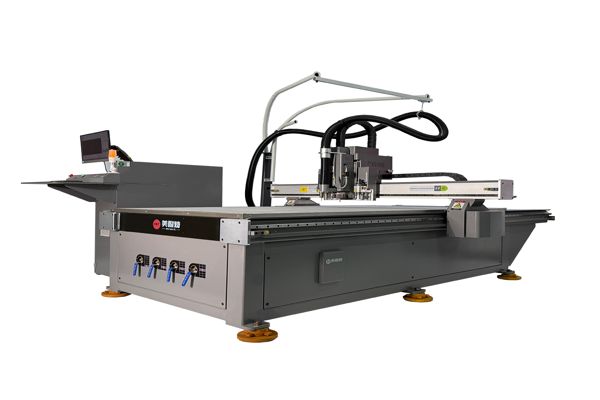

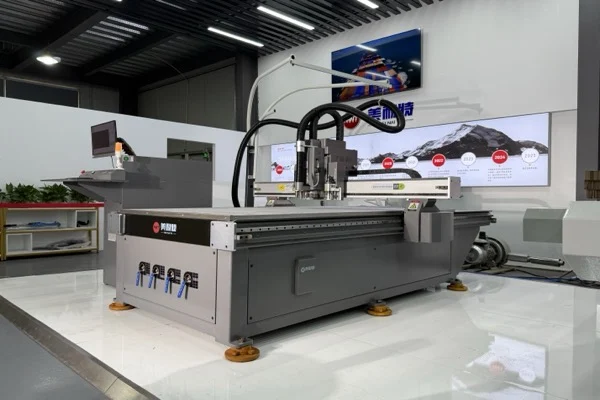

T7 ATC Digital Engraving & Cutting Machine

Combining a 40,000 RPM router spindle and a high-frequency oscillating knife on one gantry creates a hard engineering problem: the same frame has to stay rigid enough for chip-cutting acrylic and ACP, yet move fast and lightly enough for drag-knife work on film — all while keeping ±0.05 mm repeatability.

The T7 solves this from the bed up. The inline steel-structure base is put through vibration stress-relief treatment before machining, so residual stresses in the welded frame are released rather than slowly warping the machine in the field. Only after stress relief are all critical surfaces and mounting holes machined in a single operation on a high-accuracy gantry mill — this single-setup approach means the spindle plane, rails and worktable share one reference, eliminating the stack-up errors you get when parts are machined separately and bolted together.

Motion is handled by Leadshine (T7-1325) or Delta (T7-3020ATC) servo drives on all three axes, fed by MNT’s self-developed CNC and CAM software. Because the motion controller and the CAM are built by the same team, toolpath handoff is tight: tool changes through the linear ATC, knife oscillation and spindle ramp-up are coordinated rather than bolted-on.

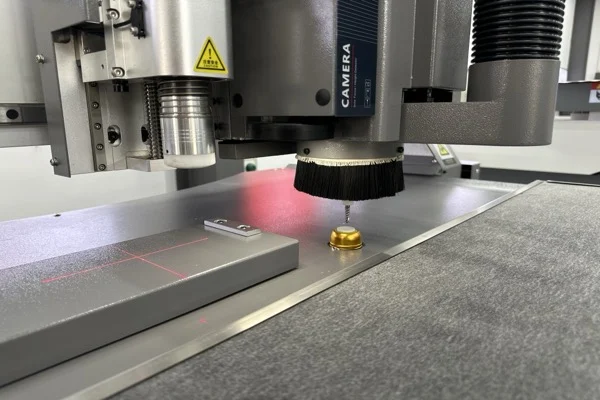

For print-and-cut, the CCD vision system locates registration marks on a printed sheet and remaps the cut path to the actual printed position, compensating for media stretch and loading skew. A 4-zone vacuum table holds thin and flexible stock flat so the knife tracks true, and integrated high-power dust extraction keeps the optical path and rails clean — directly protecting the accuracy figures above over long production runs.
