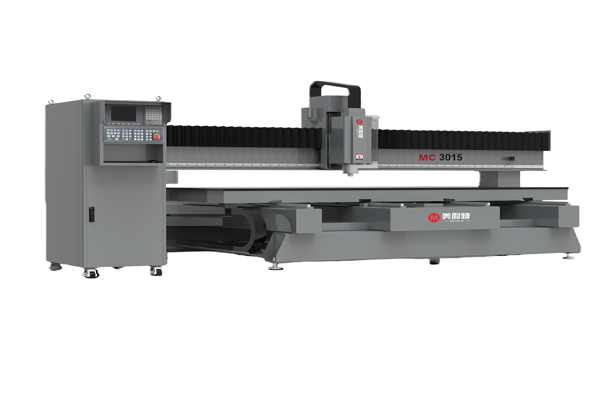

M3015 CNC Engraving & Machining Center
The MNT M3015 is a heavy-duty engraving and machining center built on an annealed industrial steel structure with a fixed-column gantry and moving-table design for maximum stability. Direct-drive XYZ axes, a 9 kW ATC spindle and an 8-tool changer make it a true processing center for hard materials.
- 💰 From $34,100
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
M3015 Full Specifications
| Parameter | Specification |
|---|---|
| Working area | 3000 × 1500 mm |
| Spindle | 9.0 kW air-cooled ATC |
| Tool changer | 8-tool disc-type ATC |
| Equipment power | 5.5 kW |
| Vacuum pump | 7.5 kW |
| Max processing speed | 35 m/min |
| Positioning accuracy | ±0.02 mm |
| Repeatability | ±0.01 mm |
| Drive | Direct-drive XYZ, imported servo, ground guides & ball screws |
| Control system | Syntech (Taiwan) bus + absolute encoder for CNC machining center control |
| Worktable | 4-zone vacuum hold-down |
| Overall dimensions | 2900 × 4500 × 2000 mm |
| Power supply | AC 380V / 50Hz |
| Net weight | 4500 kg |
Why Precision Work Goes on the M3015
Direct-drive axes and a Taiwanese bus control put this machine in a different accuracy class from a belt-driven router.
Direct-Drive XYZ, ±0.02 Mm
- Direct-drive on all three axes with imported servos, ground guides and ball screws
- ±0.02 mm positioning, ±0.01 mm repeatability
- Annealed industrial steel structure, fixed-column gantry with moving table for stability
- For distributors: this is the model to lead with when the customer is comparing you against a machining centre rather than a router — the direct drive and the accuracy figures are what win that comparison
9 kW ATC Spindle, 8-Tool Changer
- 9 kW air-cooled ATC spindle with an 8-tool disc changer
- Syntech (Taiwan) bus control with absolute encoders — no homing after power-up
- 4-zone vacuum hold-down, 7.5 kW pump, 35 m/min processing speed
- For distributors: an 8-tool magazine means the customer buys tooling from you for years — specify the starter set with the machine. spare-parts commitment, territory and technical training are set out on our partnership page

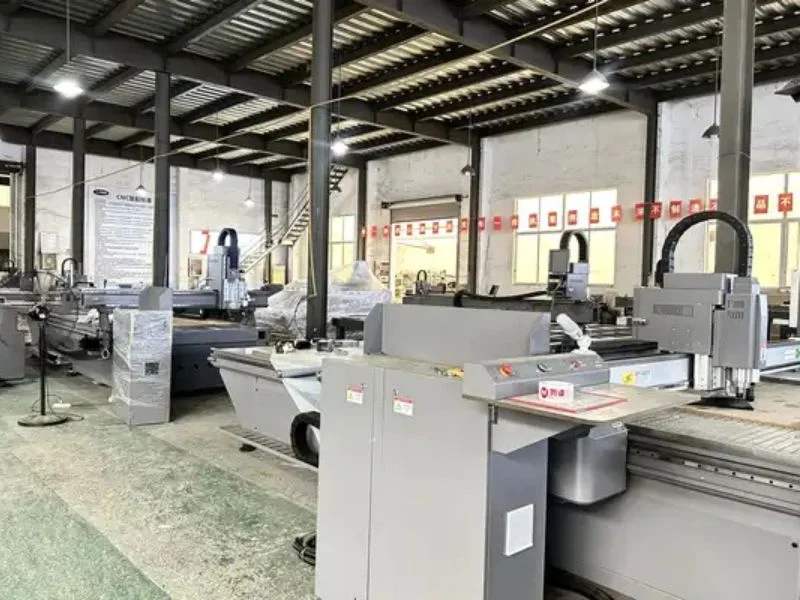

The Factory That Builds Your M3015
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a Precision Part for a Free M3015 Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a Drawing for a Free Machining Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
Why Direct-Drive Beats Rack-and-Pinion Here
The M3015 drives its XYZ axes with direct-drive transmission rather than rack-and-pinion. On rack systems, backlash and wear in the gear mesh gradually erode accuracy; direct drive removes that mesh, so the M3015 holds ±0.02 mm positioning and ±0.01 mm repeatability over a long service life.
It is built on a heavy annealed steel frame with a fixed-column gantry and moving table — the gantry stays put while the table carries the work, which keeps the cutting forces close to the most rigid part of the structure and minimises vibration. Imported servos, precision-ground linear guides and ground ball screws complete a platform that behaves like a metalworking machining center, and a Syntech (Taiwan) bus with absolute encoder feedback keeps motion precise and repeatable.
For production planning, buyers should also review local guarding, dust-control and woodworking-machine safety requirements. Useful references include OSHA machine guarding guidance, OSHA wood dust guidance and the ISO 19085-1 woodworking machines safety standard.
M3015 — Frequently Asked Questions
What is the M3015 CNC Engraving and Machining Center Used For?
The MNT M3015 is used for high-precision engraving, milling, drilling and cutting of hard sheet materials. It is suitable for acrylic, aluminum, plastics, composites, cabinet doors, LED signage letters and high-value panel processing.
Is the M3015 a CNC Router or a Machining Center?
The M3015 is more than a standard CNC router. It uses a heavy-duty structure, direct-drive axes, an ATC spindle and a vacuum worktable, making it suitable for stable industrial machining and engraving.
What Materials Can the M3015 Process?
The M3015 can process acrylic, aluminum, engineering plastics, composite panels, cabinet door panels and advertising materials. The final result depends on material type, thickness, cutter selection, spindle speed and feed rate.
What is the Working Area of the M3015?
The standard working area is 3000 × 1500 mm. This size is suitable for full-size panels, acrylic sheets, cabinet doors, signage boards and other medium-to-large sheet materials.
Why Does the M3015 Use Direct-drive Transmission?
Direct drive reduces backlash from gear-mesh transmission. This helps the machine keep stable accuracy, smoother motion and better repeatability during long-term engraving, milling and cutting work.
What Spindle and Tool Changer Does the M3015 Use?
The M3015 uses a 9.0 kW air-cooled ATC spindle with an 8-tool disc-type automatic tool changer. It can switch tools automatically for cutting, engraving, drilling, grooving and finishing operations.
How Accurate is the M3015?
The M3015 offers ±0.02 mm positioning accuracy and ±0.01 mm repeatability. It is designed for buyers who need stable machining accuracy on acrylic, aluminum, composites and other high-value materials.
How Does the Vacuum Table Help Production?
The 4-zone vacuum table helps hold sheet materials flat and stable during machining. Operators can open only the required vacuum zones according to sheet size, which improves holding efficiency and reduces material movement.
What Should I Prepare Before Installation?
Please prepare AC 380V / 50Hz power, enough floor space, vacuum pump connection, dust extraction, compressed air if required, tooling, CAD/CAM files and trained operators. MNT can confirm the installation requirements before delivery.
What Information is Needed for a Quotation?
Please send your material type, sheet size, thickness range, drawing file, required process, tolerance requirement and daily production volume. MNT will recommend the suitable spindle, tooling, vacuum setup and machine configuration.
