X5 Fiber Laser Metal Plate Cutting Machine
The MNT X5 is a fiber laser cutting machine for metal plate. A heavy annealed steel frame with a rack-and-pinion dual-drive moving gantry, imported servos and ground guides carries a long-life fiber laser source and a professional cutting control system for fast, stable sheet-metal cutting.
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
X5 Full Specifications
| Parameter | Specification |
|---|---|
| Working area | 3000 × 1500 mm |
| Laser power | 3000 W / 6000 W |
| Optimal cutting speed | 15–35 m/min |
| Max travel speed | 60 m/min |
| Positioning accuracy | 0.05 mm |
| Control system | Professional fiber laser cutting control |
| Laser source | Domestic long-life (100,000 h) |
| Cutting head / chiller | Premium domestic cutting head + water chiller |
| Drive | Rack-and-pinion dual-drive moving gantry, imported servo, ground guides |
| Transmission | Screw |
| Exhaust | Zoned ventilation / dust removal |
| Rated power | 5 kW |
| Footprint | 5000 × 3000 mm |
| Power supply | AC 380V / 50Hz |
| Net weight | 2000 kg |
Why Fabricators Choose the X5
On a plate laser the frame decides whether the machine still cuts square in year three — the source is a commodity, rigidity is not.

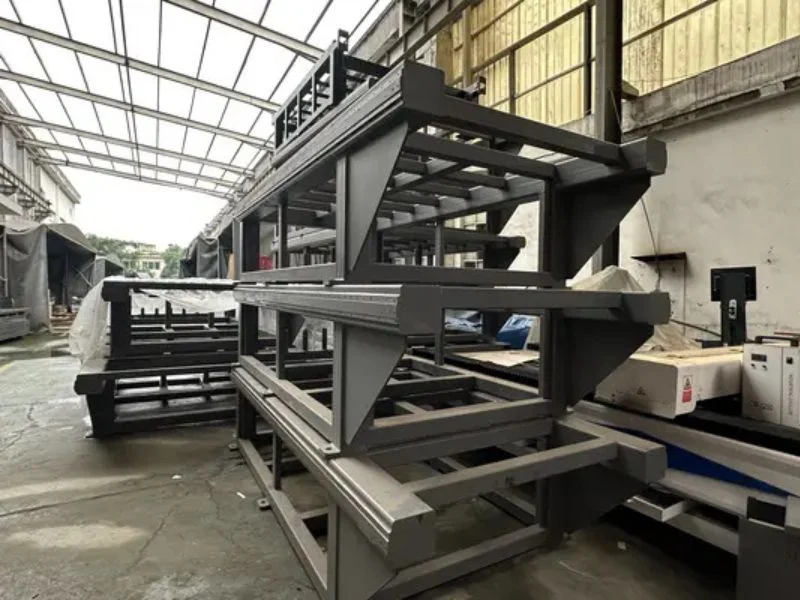

The X5 Frame Is Why It Still Cuts Square in Year Three
- Heavy annealed steel frame, stress-relieved so accuracy holds over years
- Rack-and-pinion dual-drive moving gantry with imported servos and ground guides
- 60 m/min travel without the chatter that shows up on the cut edge
- For distributors: the X5 is where a single sale is worth ten knife tables — but the buyer will want to see a cut before signing. Plan for someone on your side who can run a demonstration, not just quote a spec sheet
3 kW or 6 kW — Sized to Your Work
- Both powers offered; we recommend by your thickness list, not by margin
- 100,000-hour laser source, premium cutting head and chiller included
- 0.05 mm positioning across a 3000 × 1500 mm bed
- For distributors: consumables here are nozzles and protective lenses — lower frequency than a knife platform but higher unit value, and the source itself is the one part customers ask about. spare-parts commitment, territory and technical training are set out on our partnership page
The Factory That Builds Your X5
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a DXF for a Free X5 Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a DXF for a Free Sheet Metal Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
X5 — Frequently Asked Questions
What is the X5 Fiber Laser Metal Plate Cutter Used For?
The MNT X5 is used for flat metal plate and sheet metal cutting in metal fabrication. It is suitable for machinery parts, electrical cabinets, signage frames, brackets, panels and other flat metal components that require fast CNC laser cutting.
What Metals Can the X5 Fiber Laser Cutting Machine Cut?
The X5 can cut carbon steel, stainless steel, galvanized sheet, aluminum and other common sheet metals. For more model options, see our fiber laser cutting machine category page. The final cutting result depends on material type, plate thickness, laser power, assist gas and required edge quality.
Should I Choose 3000W or 6000W Laser Power?
Choose 3000W for thinner sheet metal, sample production and general fabrication. Choose 6000W when you cut thicker plates, need higher daily output or want better productivity on medium-thickness metal. Send your material and thickness range before configuration.
What Thickness Can the X5 Cut?
Cutting thickness depends on laser power, material, gas type and edge-quality requirement. Carbon steel, stainless steel and aluminum have different cutting limits. For an accurate recommendation, share your metal type, maximum thickness and expected cutting quality.
What Assist Gas Should I Use for Metal Laser Cutting?
Oxygen is commonly used for carbon steel, especially when cutting thicker mild steel. Nitrogen is preferred for stainless steel and aluminum when a cleaner, low-oxidation edge is required. Compressed air may reduce gas cost for some thin-sheet jobs.
What is the Working Area of the X5?
The standard X5 working area is 3000 × 1500 mm, suitable for common sheet metal formats. If your plate size, loading method or production workflow is different, MNT can help confirm whether a customized table size is needed.
How is the X5 Different from the X6 and X6040?
The X5 is designed for flat metal plate and sheet metal cutting in metal fabrication workshops, including machinery panels, brackets, electrical cabinets, signage frames and other flat metal components. For buyers looking for a stainless steel panel hollowing laser cutting machine, the X5 can produce decorative cutouts, ventilation patterns, custom openings and complex designs in stainless steel sheets. For tube, pipe and structural profile cutting, compare it with the X6 fiber laser tube cutter.
What Should I Prepare Before Installation?
Before installation, prepare stable AC 380V / 50Hz power, assist gas supply, water chiller space, ventilation or dust extraction, unloading access and enough maintenance space around the machine. MNT can confirm the site requirements before delivery.
What Maintenance Does the X5 Need?
Regular maintenance includes checking the nozzle, protective lens, cutting head, water chiller, gas line, guide rail, rack drive and dust-removal system. Keeping optics clean and gas pressure stable helps maintain cutting quality and reduce downtime.
What Information is Needed for a Quotation?
Please send your material type, maximum and common thickness, sheet size, drawing file, daily cutting volume, required tolerance and edge-quality standard. MNT will recommend the suitable laser power, configuration and price based on your production needs.
