T2 Vision Contour-Following CNC Router
The MNT T2 is an automatic contour-following CNC router built for the woodworking and advertising industries. An imported industrial camera and MNT’s proprietary edge-detection system deliver fully automatic visual alignment, so irregular and personalised shapes are cut precisely without manual positioning.
- 💰 From $5,200
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
T2 Full Specifications
| Parameter | Specification |
|---|---|
| Working area | 1300 × 2500 mm |
| Spindle | 3.0 kW air-cooled |
| Control system | NK105 controller |
| Vision system | Imported industrial CCD camera + contour-following control |

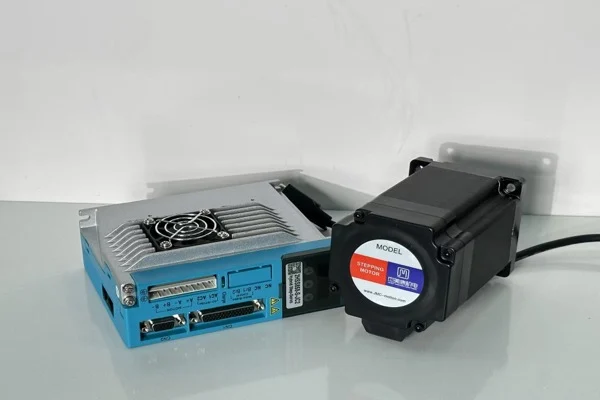

| Drive motor | Hybrid stepper-servo |
| Supported files | DXF, PLT, NC |
| Materials | Acrylic, wood, aluminium sheet, ABS, insulating board, bakelite, PVC, KT board, foam, ACP, hollow sheet |
| Power supply | AC 380V / 50Hz / 3-phase |
| Net weight | 1500 kg |
Why Sign Shops Start With the T2
The entry point into vision cutting — the machine that pays for itself on contour work a plotter cannot handle.

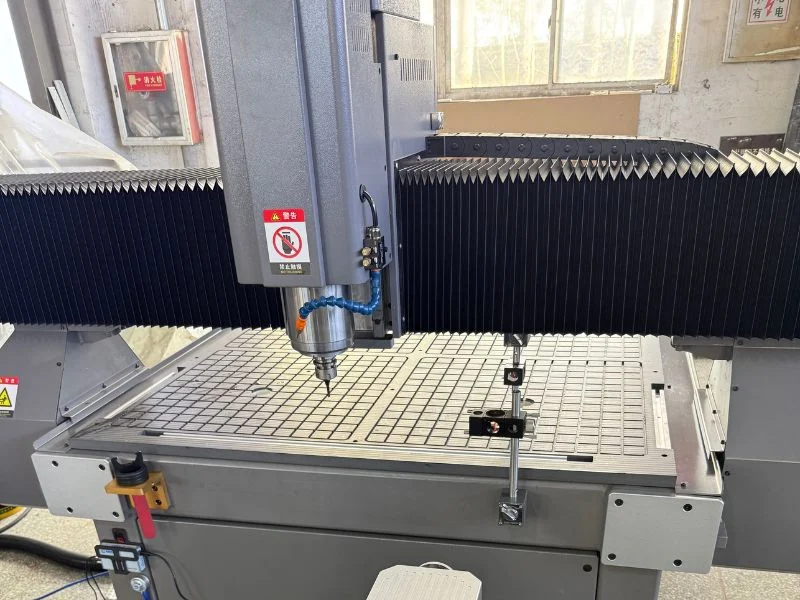

Camera Alignment on Irregular Shapes
- Imported industrial CCD camera with MNT’s own edge-detection control
- Fully automatic alignment — personalised and irregular shapes cut without manual datum setting
- Reads DXF, PLT and NC straight from your design software
- For distributors: at USD 5,200 this is the lowest ticket in the catalogue and the easiest first machine to place — cheap enough to keep on your showroom floor as a demo, and the model most customers upgrade *from*
One Bed, Every Advertising Substrate
- Acrylic, wood, aluminium sheet, ABS, insulating board, bakelite, PVC, KT board, foam, ACP, hollow sheet

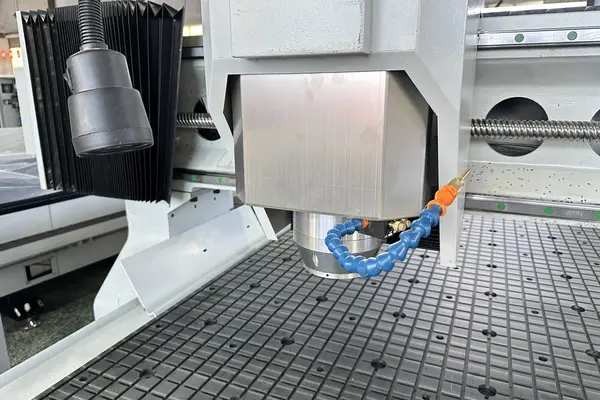

- 3.0 kW air-cooled spindle — no chiller to install or maintain
- 1300 × 2500 mm bed takes a full advertising sheet in one placement
- For distributors: air-cooled means one less thing to go wrong on site and a simpler install for your engineer. spare-parts commitment, territory and technical training are set out on our partnership page

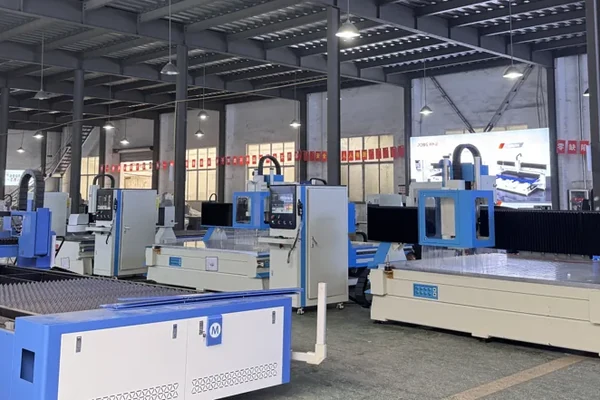

The Factory That Builds Your T2
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send Artwork for a Free Contour-Cut Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us Artwork for a Free Contour-Cut Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
T2 — Frequently Asked Questions
What is the T2 Vision CNC Router Used For?
The MNT T2 is used for automatic contour cutting, engraving and routing in advertising and woodworking production. It is suitable for acrylic signs, shaped boards, printed panels, wood parts, PVC sheets, ACP panels and display materials.
How Does the T2 Vision System Work?
The T2 uses an imported industrial CCD camera and contour-following control system. The camera reads the workpiece edge or printed marks, then the system aligns the toolpath to the real material position automatically.
What Materials Can the T2 Cut?
The T2 can cut wood, acrylic, PVC, ABS, insulating board, bakelite, aluminium composite panel, KT board, foam and hollow sheet. The final result depends on material type, thickness, cutter selection and cutting parameters.
Can the T2 Cut Printed Graphics and Irregular Shapes?
Yes. The T2 is designed for print-to-cut and irregular shape cutting. It helps reduce manual alignment errors when cutting printed signs, shaped acrylic letters, decorative boards and personalized panels.
What is the Working Area of the T2?
The standard T2 working area is 1300 × 2500 mm. This 1325 size is suitable for common advertising boards, acrylic sheets, PVC panels, wood boards and medium-format sign production.
What File Formats Does the T2 Support?
The T2 supports DXF, PLT and NC files. These formats are commonly used for CNC cutting, engraving and routing workflows from design software to machine production.
Is the T2 Better for Hard Materials or Soft Materials?
The T2 uses a 3.0 kW air-cooled spindle, so it is better for routing and cutting rigid materials such as acrylic, wood, PVC and ACP. For soft foam or KT board, tool selection should be confirmed before ordering.
How is the T2 Different from the T3 Vision CNC Router?
The T2 is an entry-level vision CNC router with a 3.0 kW air-cooled spindle and NK105 controller. The T3 is designed for higher-speed vision cutting with a water-cooled spindle and computer-based control.
What Should I Prepare Before Installation?
Please prepare AC 380V / 50Hz / 3-phase power, enough floor space, dust extraction, suitable cutters, CAD/CAM files and trained operators. MNT can confirm the installation requirements before delivery.
What Information is Needed for a Quotation?
Please send your material type, sheet size, thickness range, drawing file, printed sample if available, required cutting process and daily production volume. MNT will recommend the suitable T2 configuration based on your real production needs.
Get a Tailored Quote for the T2
Tell us your materials, sheet size and daily volume — we’ll recommend the right configuration and send pricing within one business day.
