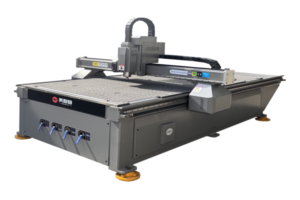

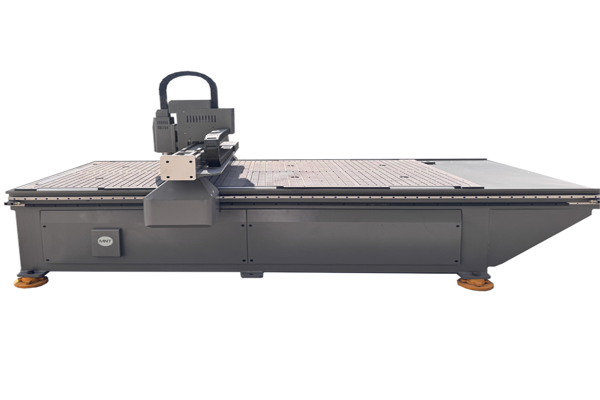

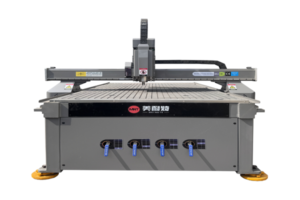

T3 High-Speed Vision CNC Router
The MNT T3 is a high-speed automatic contour-following CNC router. With an imported industrial camera and MNT’s proprietary edge-detection control, it delivers machine-vision auto-alignment and fast, precise cutting of advertising and signage materials.
- 💰 From $8,900
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
T3 Full Specifications
| Parameter | Specification |
|---|---|
| Working area | 1300 × 2500 mm |
| Spindle | 3.0 kW water-cooled |
| Control system | Computer-based control |
| Vision system | Imported industrial CCD camera + contour-following control |
| Drive motor | Hybrid stepper-servo |
| Supported files | DXF, PLT, NC |
| Materials | Acrylic, wood, ABS, insulating board, bakelite, PVC, ACP; KT board, foam and hollow sheet with optional knife head |
| Power supply | AC 380V / 50Hz / 3-phase |
| Net weight | 1500 kg |
| Related router option | For precision routing work without vision contour-following, compare the T5 precision CNC router. |
Why Print Shops Move Up to the T3
Same vision system as the T2, built to run all day — the difference is throughput, not capability.
Built for Continuous Production
- 3.0 kW water-cooled spindle — sustained duty rather than intermittent jobs
- High-speed gantry tuned for advertising and signage volume
- Same imported CCD camera and edge-detection control as the T2
- For distributors: this is the natural upgrade conversation with any T2 owner whose volume has grown — the vision workflow is identical, so there is no retraining objection to overcome
Knife Head Optional for Soft Media
- Spindle handles acrylic, wood, ABS, insulating board, bakelite, PVC and ACP
- Optional knife head adds KT board, foam and hollow sheet
- Computer-based control with DXF, PLT and NC support
- For distributors: the optional knife head is a useful upsell at quotation time — and a reason for the customer to come back to you rather than buy a second machine elsewhere. spare-parts commitment, territory and technical training are set out on our partnership page
The Factory That Builds Your T3
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a Printed Sheet for a Free Print-to-Cut Test
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a Printed Sheet for a Free Print-to-Cut Test — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
High-Speed Vision Alignment and Router Safety Notes
The T3 is designed for higher-speed vision contour routing, so stable production depends on both camera recognition and mechanical routing conditions. Keep printed marks sharp, maintain consistent lighting around the CCD camera, confirm cutter diameter compensation and inspect the water-cooled spindle system before long production runs.
For shop planning, review OSHA guidance on machine guarding and wood dust exposure when routing wood, acrylic, PVC, ACP or composite boards. For international machine safety planning, ISO 19085-3 is a useful reference for numerically controlled boring and routing machines.
T3 High-Speed Vision CNC Router FAQ
What is the T3 High-speed Vision CNC Router Used For?
The MNT T3 is used for high-speed contour cutting, engraving and routing in advertising, signage and print-finishing production. It is suitable for acrylic signs, ACP panels, PVC boards, printed panels, wood parts and display materials.
How Does the T3 Vision System Work?
The T3 uses an imported industrial CCD camera and contour-following control system. The camera reads the real sheet position, edge or printed marks, then automatically aligns the cutting path to the material.
Can the T3 Cut Printed Graphics?
Yes. The T3 is designed for print-to-cut contour cutting. It helps reduce manual alignment errors when cutting UV-printed boards, advertising panels, shaped signs, display graphics and personalized printed materials.
What Materials Can the T3 Cut?
The T3 can cut acrylic, wood, ABS, insulating board, bakelite, PVC and aluminium composite panel. With an optional knife head, it can also process KT board, foam and hollow sheet.
What is the Working Area of the T3?
The standard T3 working area is 1300 × 2500 mm. This 1325 size is suitable for common advertising boards, acrylic sheets, ACP panels, PVC boards and medium-format print-finishing jobs.
How is the T3 Different from the T2 Vision CNC Router?
The T3 is built for higher-speed and more continuous production. It uses a 3.0 kW water-cooled spindle and computer-based control, while the T2 is an entry-level model with an air-cooled spindle and NK105 controller.
Why Does the T3 Use a Water-cooled Spindle?
A water-cooled spindle is better for longer and more stable cutting runs. It helps support high-volume advertising, signage and contour-cutting production where the machine may run for extended periods.
Should I Choose a Spindle or Knife Head?
Choose the spindle for rigid materials such as acrylic, wood, PVC and ACP. Choose the optional knife head when cutting softer materials such as KT board, foam and hollow sheet.
What File Formats Does the T3 Support?
The T3 supports DXF, PLT and NC files. These formats are commonly used for CNC routing, engraving and contour-cutting workflows from design software to production.
What Should I Prepare Before Installation?
Please prepare AC 380V / 50Hz / 3-phase power, enough floor space, dust extraction, suitable cutters, CAD/CAM files and trained operators. MNT can confirm the installation requirements before delivery.
