X6 Fiber Laser Tube & Profile Cutting Machine
The MNT X6 is a fully automatic fiber laser tube cutting machine. Sensor-less tube detection and a self-centering pneumatic four-jaw chuck let it cut round, square, rectangular and structural profiles accurately, with a dedicated bus system for bevels, holes, notches and miters.
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
X6 Full Specifications
| Parameter | Specification |
|---|---|
| Laser power | 6000 W |
| Max cutting length | 6000 mm |
| Round tube | Ø 10–220 mm |
| Square tube | 10–150 mm |
| Tail length | 130 mm |
| Max Y-axis speed | 50 m/min |
| Max chuck speed | 120 rpm |
| Repeatability | ±0.02 mm |
| Accuracy (full length) | within 0.15 mm |
| Chuck | Pneumatic self-centering 4-jaw |
| Functions | Cut-off, drilling, hollowing, bevel, piercing, weld-prep notch, 45° miter |
| Control system | Professional fiber laser tube-cutting bus |
| Drive | Imported servo; imported screw + L6 high-precision rack |
| Power consumption | 10 kW |
| Power supply | AC 380V ±5% / 50Hz |
| Net weight | 3500 kg |
Why Tube Fabricators Choose the X6
A tube laser is not a plate machine with a rotary axis bolted on — the chuck, the tail length and the software are the machine.
Built as a Tube Machine From the Start

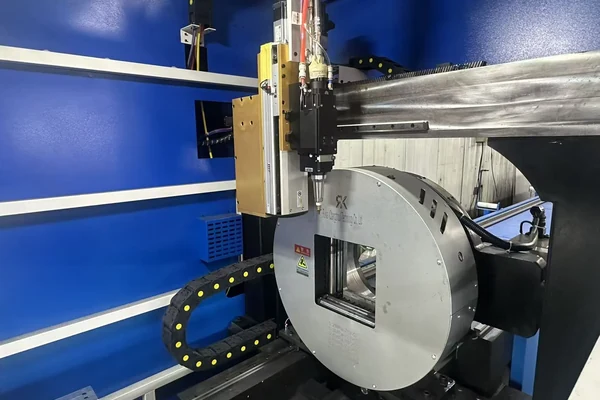

- Pneumatic self-centring four-jaw chuck — holds thin wall without crushing it
- 130 mm tail length: less of every stick ends up as offcut
- Sensor-less tube detection — no manual datum setting per bar
- For distributors: tube is a separate market from plate, so this machine does not cannibalise your sheet-laser sales — it opens fabricators who already own a plate laser and are still sawing tube by hand
Weld-Prep Cut Into the Part, Not Ground On After

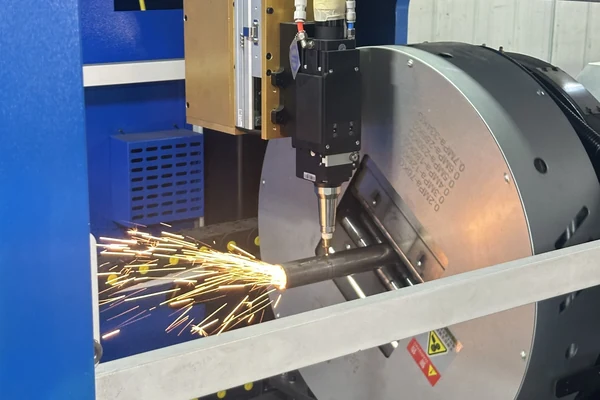

- Cut-off, drilling, hollowing, piercing, notching, bevel and 45° miter in one program
- ±0.02 mm repeatability, within 0.15 mm over the full 6000 mm length
- Round Ø 10–220 mm, square 10–150 mm, plus angle and channel
- For distributors: the bevel function is the demo that closes this machine — it removes a whole grinding operation the customer is doing by hand today. spare-parts commitment, territory and technical training are set out on our partnership page

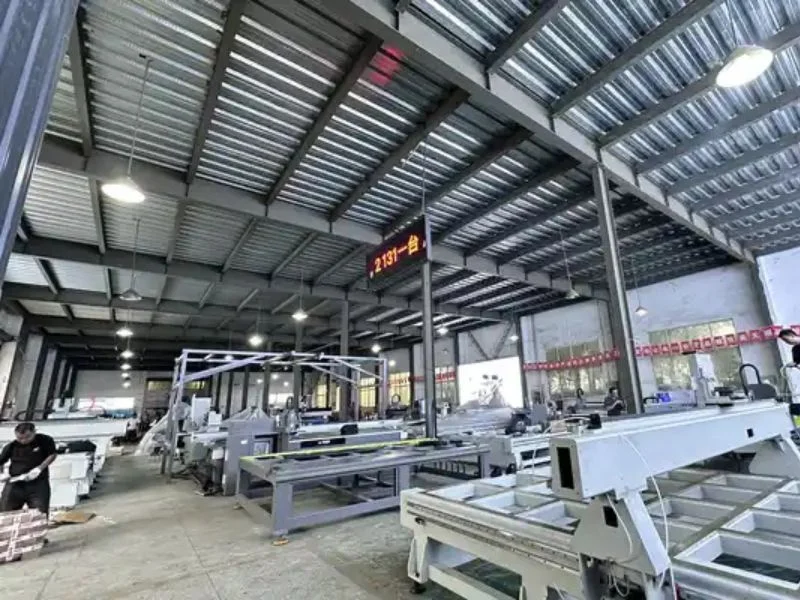

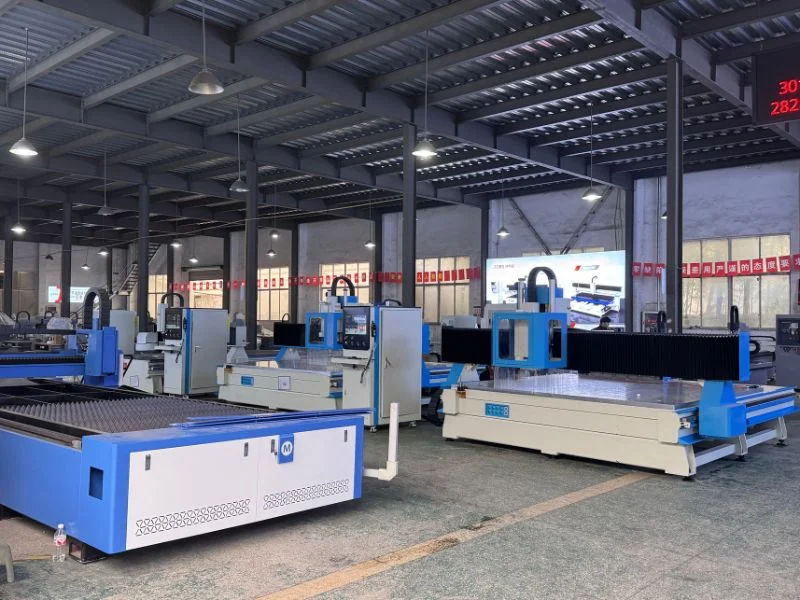

The Factory That Builds Your X6

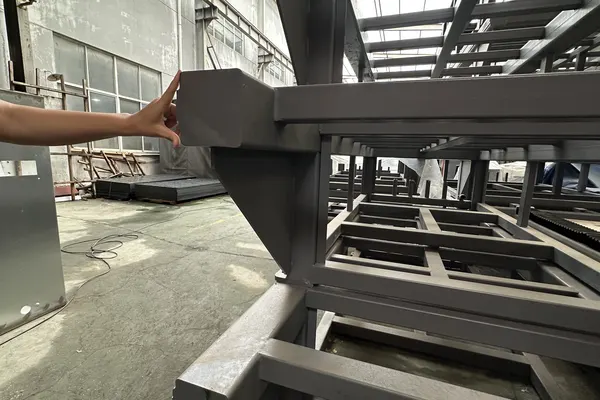

- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a Drawing for a Free X6 Tube Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a Drawing for a Free Tube Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
X6 — Frequently Asked Questions
What is the X6 Fiber Laser Tube Cutter Used For?
The MNT X6 is used for cutting metal tubes, pipes and structural profiles in metal fabrication. It is suitable for machinery frames, metal furniture, railings, fitness equipment, automotive parts, steel structures and welded tube assemblies.
What Tube Shapes Can the X6 Cut?
The X6 can cut round tubes, square tubes, rectangular tubes, channel profiles, angle profiles and other supported metal profiles. For irregular or special-shaped profiles, please send a drawing or sample photo before configuration.
What Materials Can the X6 Fiber Laser Tube Cutting Machine Process?
The X6 can process common metal tubes such as carbon steel, stainless steel, galvanized steel and aluminum. For more model options, see our fiber laser cutting machine category page. The final cutting result depends on material type, wall thickness, laser power, assist gas and required edge quality.
What Tube Size Can the X6 Cut?
The standard X6 supports round tubes from Ø10–220 mm and square tubes from 10–150 mm, with a maximum cutting length of 6000 mm. Please confirm your tube diameter, wall thickness and profile type before ordering.
Can the X6 Cut Holes, Bevels and Miter Joints?
Yes. The X6 can perform cut-off, hole cutting, hollowing, piercing, bevel cutting, weld-prep notching and 45° miter cutting. This helps reduce secondary drilling, sawing and manual grinding.
Does the X6 Support Automatic Tube Loading?
Yes. An automatic loading system can be configured for round, square and rectangular tubes. It helps reduce manual handling, improve cutting continuity and support higher-volume tube production.
How Much Tail Material Does the X6 Leave?
The X6 is designed with a 130 mm tail length. A shorter tail helps reduce material waste, especially when cutting expensive stainless steel or aluminum tubes in repeated production.
What Assist Gas Should I Use for Tube Laser Cutting?
Oxygen is commonly used for carbon steel tube cutting. Nitrogen is preferred for stainless steel and aluminum when cleaner, low-oxidation edges are required. Compressed air may be used for some cost-sensitive thin-wall tube jobs.
What is the Difference Between the X5 and X6 Fiber Laser Machines?
The X5 fiber laser metal plate cutter is designed for flat metal plate cutting, while the X6 is designed for tube and profile cutting. Choose X5 for sheet metal parts and X6 for round tubes, square tubes, rectangular tubes and structural profiles.
What Information is Needed for an X6 Quotation?
Please send your tube material, tube shape, diameter or side length, wall thickness, maximum length, drawing file, daily cutting volume and required cutting process. MNT will recommend the suitable configuration based on your real tube production needs.
