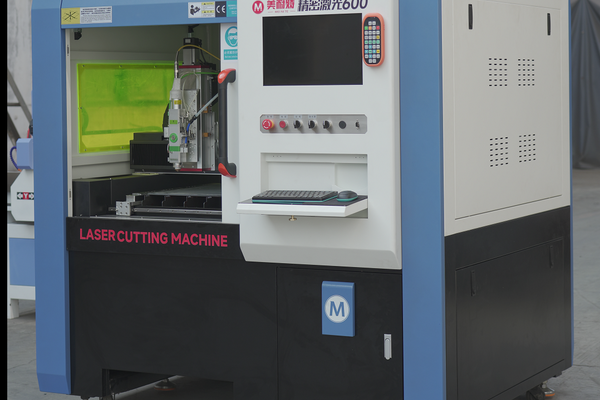

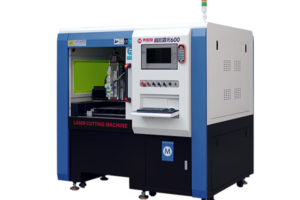

X6040 Precision Fiber Laser Cutting Machine
The MNT X6040 is built for high-speed laser processing of thin-gauge metal. A rigid marble frame, a lightweight CNC-milled beam and precision linear guides give it the acceleration and accuracy needed for fine, intricate parts in electronics, jewelry and precision manufacturing.
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
X6040 Full Specifications
| Parameter | Specification |
|---|---|
| Application | High-speed cutting of thin-gauge metal sheet |
| Laser power | 1500 W |
| Max acceleration | 1.5 G |
| Max speed | 40 m/min |
| Positioning accuracy | ±0.02 mm |
| Repeatability | ±0.005 mm |
| Frame | Marble structure |
| Beam | Lightweight, CNC gantry-milled |
| Guides | Precision linear guides + slide modules |

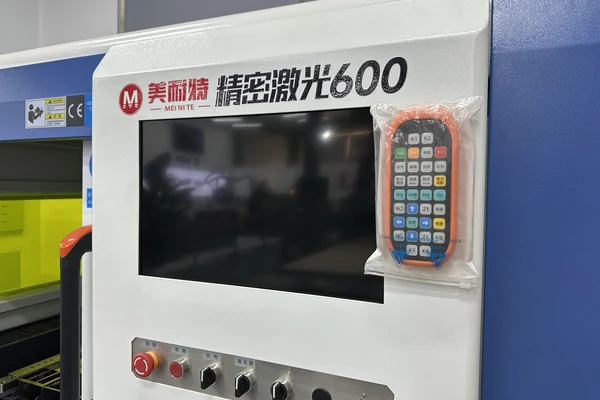

| Control software | AheadTechs AT-series (optional vision positioning) |
| Drive | Dual-drive precision slide module, servo |
| Power consumption | 3 kW (excl. chiller and laser) |
| Power supply | AC 380V ±5% / 50Hz |
| Net weight | 1000 kg |
Why Precision Shops Choose the X6040
Thin-gauge precision work is an acceleration problem, not a power problem — which is why this machine is built on marble.
Marble Frame, 1.5 G Acceleration
- Rigid marble structure with a lightweight CNC gantry-milled beam
- 1.5 G acceleration and 40 m/min — the numbers that matter on small intricate parts
- ±0.02 mm positioning, ±0.005 mm repeatability
- For distributors: this is the specialist end of the range — electronics, jewellery and precision hardware. Fewer prospects than sheet metal, but almost no price comparison because little else in this class exists
1500 W, Tuned for Thin Metal
- Sized for thin-gauge sheet rather than plate — speed and finesse over brute power
- Precision linear guides with dual-drive slide modules
- AheadTechs control with optional vision positioning for printed or pre-marked stock
- For distributors: a low-power source means lower running cost and a simpler install — useful when the customer has no three-phase capacity to spare. spare-parts commitment, territory and technical training are set out on our partnership page
The Factory That Builds Your X6040
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a Part File for a Free Precision Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a Part File for a Free Precision Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
Why a Marble Frame for Precision Laser Cutting
For fine, thin-metal parts the limiting factor is not laser power but how precisely and quickly the head can be positioned. The X6040 addresses this with a marble (granite) frame — a material prized in metrology for its dimensional stability, vibration damping and freedom from internal stress. It gives the platform exceptional rigidity without the thermal drift of a welded steel frame.
On top of that base sits a lightweight beam, CNC gantry-milled for accuracy, so the moving mass is low and acceleration is high (1.5 G). Precision linear guides and dual-drive slide modules convert that into ±0.005 mm repeatability at 40 m/min. Driven by AheadTechs AT-series software with optional vision positioning, the X6040 turns out intricate parts for electronics, jewelry and precision industries that larger plate cutters can’t hold to tolerance.
X6040 — Frequently Asked Questions
What is the X6040 Precision Fiber Laser Cutter Used For?
The MNT X6040 is used for high-speed, high-precision cutting of thin metal sheet and small metal parts. It is suitable for electronics, jewelry, eyewear frames, silicon-steel laminations, instruments, watches and precision metal fabrication components.
What Materials Can the X6040 Cut?
The X6040 can cut common thin metal materials such as stainless steel, carbon steel, aluminum, brass, copper and other supported metal sheets. For more model options, see our fiber laser cutting machine category page. The final result depends on material type, thickness, laser parameters and assist gas.
Is the X6040 Suitable for Thick Metal Plate Cutting?
No. The X6040 is designed for thin-gauge metal and fine parts, not heavy plate cutting. For large-format or thicker sheet metal, the X5 fiber laser metal plate cutter is a better choice.
Why Does the X6040 Use a Marble Frame?
A marble frame helps improve rigidity, vibration damping and long-term dimensional stability. This is important for small intricate parts where repeatability and stable motion are more important than raw laser power.
How Precise is the X6040?
The X6040 offers ±0.02 mm positioning accuracy and ±0.005 mm repeatability. It is built for fine metal cutting where small contours, narrow slots, clean holes and consistent part size are required.
Does the X6040 Support Vision Positioning?
Yes. The X6040 runs AheadTechs AT-series software and can be configured with optional vision positioning. This helps improve alignment for printed metal sheets, fine patterns and small precision parts.
Which Industries Commonly Use the X6040?
The X6040 is commonly used in 3C electronics, jewelry, eyewear, new energy parts, silicon-steel laminations, precision instruments, watches and small metal component manufacturing.
What Assist Gas Should I Use for Precision Metal Cutting?
Nitrogen is preferred when a clean, low-oxidation edge is required, especially for stainless steel and aluminum. Oxygen can be used for carbon steel, while compressed air may be suitable for some cost-sensitive thin-sheet jobs.
How is the X6040 Different from the X5 and X6?
The X6040 is a compact precision cutter for thin metal and small parts. The X5 fiber laser metal plate cutter is for large flat metal plates, while the X6 fiber laser tube cutter is for tubes, pipes and metal profiles.
What Information is Needed for an X6040 Quotation?
Please send your material type, sheet size, thickness range, drawing file, tolerance requirement, edge-quality standard and daily production volume. MNT will recommend the suitable configuration based on your real cutting needs.
