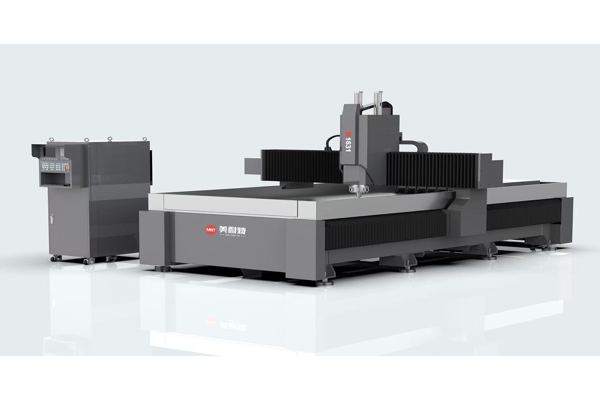

M1631 / MC1631 CNC Machining Center
MNT offers two standard configurations on this page: M1631, a moving-table ATC CNC machining center for 3000 x 1500 mm precision processing, and MC1631, a moving-gantry ATC machining center for 1600 x 3100 mm work with higher Z travel and 5000 kg table load capacity.
- 💰 From $32,600
- 📦 In Stock
- 🚚 20 days lead time
- 🧮 MOQ 1 unit
- 💳 T/T
- 🛡 12-month warranty
Two Standard Configurations
Choose M1631 for moving-table precision machining, or MC1631 for moving-gantry processing with larger Y travel, higher Z stroke and heavier table load capacity.

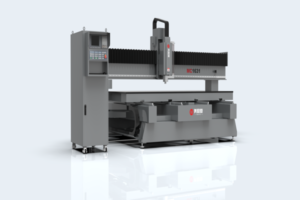

M1631 Moving-Table ATC Configuration
Download M1631 PDF
MC1631 Moving-Gantry ATC Configuration
Download M1631 PDFM1631 vs MC1631 Specifications
| Parameter | M1631 moving-table configuration | MC1631 moving-gantry configuration |
|---|---|---|
| Machine type | ATC CNC engraving and machining center with moving table | ATC CNC machining center with moving gantry |
| Working area | X 3000 mm / Y 1500 mm / Z 150 mm | X 1600 mm / Y 3100 mm / Z 270 mm |
| Worktable size | 3100 x 1600 mm | Sectioned vacuum table |
| Maximum load | 800 kg | 5000 kg |
| Positioning accuracy | 0.025 mm full travel | 0.05 mm total excursion |
| Repeatability | 0.025 mm/m | See project confirmation |
| Rapid traverse | X/Y 30 m/min; Z 15 m/min | Maximum speed 40 m/min |
| Cutting feed rate | X/Y 1-20000 mm/min; Z 1-10000 mm/min | Maximum processing speed 30 m/min |
| CNC system | Syntec 6MA-E controller | Syntec FC-60CB controller |
| Servo system | Syntec bus servo motors with absolute encoders | Syntec servo drive on X/Y/Z axes |
| Spindle | 11 kW ATC water-cooled spindle | 9 kW air-cooled spindle |
| Maximum spindle speed | 18000 RPM | 24000 RPM |
| Tool interface | NBT40; max tool diameter 20 mm | ISO30 / BT30 tool holder |
| Tool magazine | 8-position disc tool magazine | 12-position linear tool magazine |
| Transmission | C5 ground ball screw: X 4040, Y 2510, Z 4040; TBI | X/Y M2 screw rack by STOBER; Z-axis TBI ball screw |
| Linear guides | HIWIN MSA30 / MSA25 | LAPPING square guide rails: X/Z 25, Y 35 |
| Material fixing | 2-zone independently controllable vacuum adsorption | Vacuum adsorption table with 18 vacuum ports |
| Frame net weight | 3500 kg | 3500 kg frame; approx. 2000 kg machine net weight listed in TDS |
| Power supply | AC 380V / 50Hz / 3-phase | AC 380V / 50Hz / 3-phase |
| Warranty and support | 1-year machine warranty, lifetime software updates, online and on-site training/support | 1-year machine warranty, lifetime software updates, online and on-site training/support |
| Related equipment | For ATC routing work on signage and advertising panels, compare the T6 ATC engraving processing center. | |
Why Job Shops Choose the M1631
Two configurations on one platform — the choice is between table travel and load capacity, and it is worth getting right before you order.
Two Configurations, One Platform
- M1631 moving table — 3000 × 1500 × 150 mm, 800 kg, 0.025 mm over full travel
- MC1631 moving gantry — 1600 × 3100 × 270 mm, 5000 kg table load
- Same ATC spindle and control; the difference is what the part weighs and how tall it is
- For distributors: having two configurations under one model number lets you quote both a precision job shop and a heavy fixture shop without carrying two product lines — ask which one the customer is before quoting

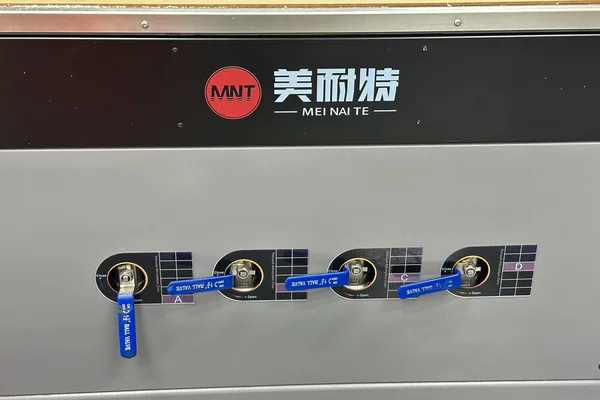

Sectioned Vacuum and ATC as Standard
- Sectioned vacuum table — suction only where the part is
- ATC spindle so multi-tool programs run without an operator standing by
- Built for acrylic, aluminium and composite rather than wood-grade duty
- For distributors: spindles, collets and tool holders are standard industrial parts we stock — no proprietary consumable locking you or your customer in. spare-parts commitment, territory and technical training are set out on our partnership page

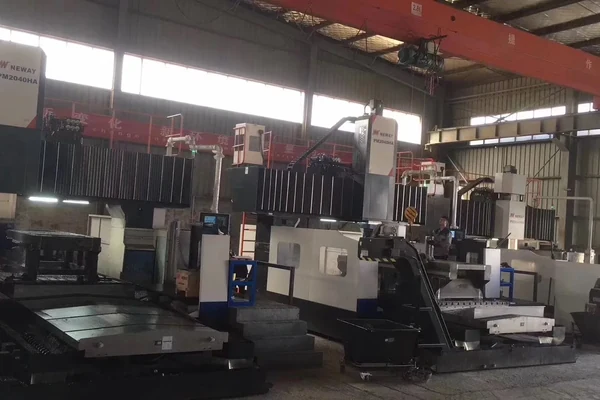

The Factory That Builds Your M1631
- Frames welded, annealed and machined in-house by Hangzhou Chaohan
- Every machine assembled, run-tested and calibrated before it ships
- You are buying from the plant, not from a trading company
CE + ISO — Send a Fixture Drawing for a Free M1631 Sample
- CE-marked and ISO 9001:2015 certified, built by Hangzhou Chaohan
- Send us a Drawing for a Free Machining Sample — we run it on the same build we ship and send photos
- 12-month warranty, lifetime software updates, on-site commissioning and training
Moving Table vs Moving Gantry in the M1631 Platform
The two standard M1631 configurations solve different mechanical problems. The M1631 moving-table model uses C5 ground ball screws and HIWIN linear guides to support precise motion over a 3000 x 1500 mm table. Its 11 kW water-cooled ATC spindle and NBT40 tool interface are suitable when tool rigidity and repeatable machining accuracy are priorities.
The MC1631 moving-gantry model keeps the workpiece on a sectioned vacuum table while the gantry moves over a 1600 x 3100 mm area. Its 12-position linear tool magazine, 9 kW 24000 RPM air-cooled spindle, STOBER rack transmission on X/Y and 270 mm Z travel make it better suited to heavier or taller workpieces.
Both technical data sheets identify MNT/Joyhigh manufacturing experience in Hangzhou, China, with CNC equipment development since 2010, a 5000 m2 facility, in-house sheet-metal fabrication, precision assembly, software, mechanical engineering and machine-tool processing teams.
For shop planning, review OSHA guidance on machine guarding and wood dust exposure when machining acrylic, wood-based panels or composite materials. For international machine safety planning, ISO 19085-3 is a useful reference for numerically controlled boring and routing machines.
M1631 / MC1631 Frequently Asked Questions
What Are the Two Standard M1631 Configurations?
The page covers two standard configurations: M1631, a moving-table ATC CNC machining center, and MC1631, a moving-gantry ATC CNC machining center. They share the same product URL because buyers compare them for similar 1600 x 3100 mm class machining work.
What is the M1631 CNC Machining Center Used For?
The M1631 is used for engraving, milling, drilling and machining acrylic products, mini luminous characters, aluminum high-gloss parts, plastics, cabinet doors, composite materials, copper and aluminum.
What is the Main Difference Between M1631 and MC1631?
M1631 uses a moving-table layout with a 3000 x 1500 x 150 mm working area, 11 kW water-cooled spindle and 8-position disc tool magazine. MC1631 uses a moving-gantry layout with a 1600 x 3100 x 270 mm working area, 9 kW air-cooled spindle and 12-position linear tool magazine.
Which Configuration Has Higher Load Capacity?
MC1631 has the heavier table-load specification at 5000 kg. M1631 is listed with an 800 kg maximum worktable load capacity.
Which Configuration Has the Stronger Spindle?
M1631 uses an 11 kW water-cooled ATC spindle with NBT40 tooling and 18000 RPM maximum speed. MC1631 uses a 9 kW air-cooled spindle with ISO30/BT30 tooling and 24000 RPM maximum speed.
Which Tool Magazine Does Each Configuration Use?
M1631 uses an 8-position disc tool magazine. MC1631 uses a 12-position linear tool magazine, which is useful when the process needs more preset tools.
What CNC Control Systems Are Used?
M1631 uses a Syntec 6MA-E controller. MC1631 uses a Syntec FC-60CB controller. Both configurations use Syntec servo technology, and the M1631 TDS specifies bus servo motors with absolute encoders.
What Power Supply is Required?
Both standard configurations are specified for AC 380V / 50Hz / 3-phase power. Site electrical requirements should be confirmed before production and shipment.
Does MNT Provide Training and After-sales Service?
Yes. The TDS lists online and on-site training, online and on-site after-sales service, 1-year machine warranty and lifetime software updates.
What Information is Needed for a Quotation?
Please send the material type, maximum sheet or workpiece size, thickness or Z-height, drawing file, required tolerance, tool process, daily production volume and whether you prefer the M1631 moving-table or MC1631 moving-gantry configuration.
Get a Tailored Quote for M1631 or MC1631
Tell us your material, workpiece size, thickness, tolerance and daily volume. MNT will recommend the right M1631 or MC1631 configuration and send pricing within one business day.
