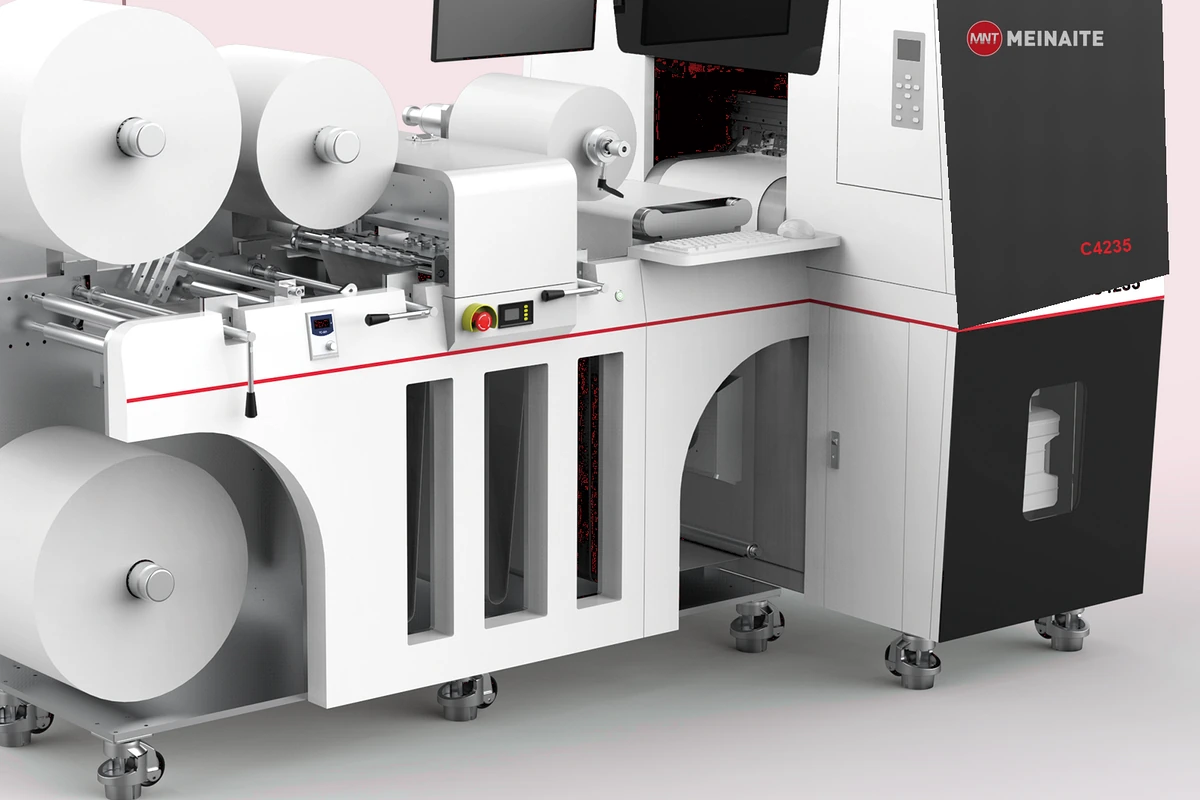

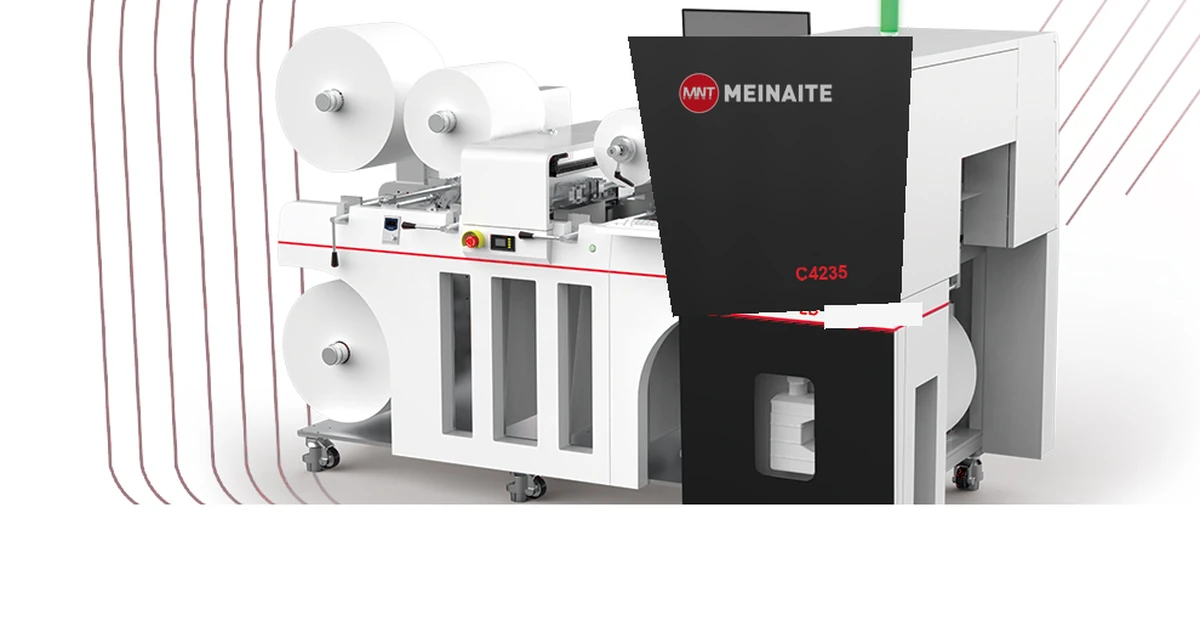

C4235 All-in-One Digital Label Printer and Cutter

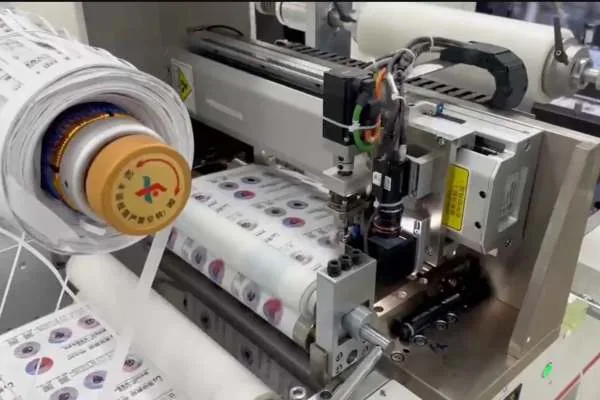

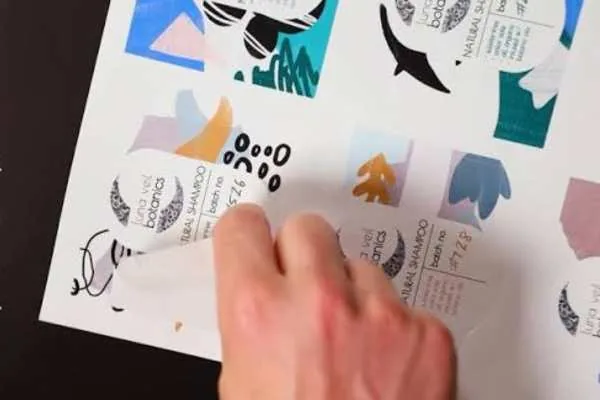

The C4235 is best suited to short-run, multi-SKU and variable-data roll-label work where printing and finishing need to stay in one workflow. Its specified maximum print width is 350 mm and print speed is 1.5 m/min. Buyers should compare those figures with their label dimensions, batch sizes, number of daily job changes and required finished-roll output.

Yes. Send the production artwork, cut path, variable-data file, exact roll material, label dimensions and expected batch size. MNT can use them to evaluate print quality, drying, registration, cutting, waste removal, slitting and rewinding. Agree the acceptance criteria before the test and keep the approved sample as the reference for the final machine specification. Submit your C4235 test job.

The current brochure specifies paper stock up to 300 gsm but does not provide a complete approved-substrate list. Coated paper, synthetic paper, film and specialty stocks should be tested using the intended ink, drying settings and laminate. Material approval should cover ink adhesion, rub resistance, feeding, cutting and matrix removal under the product’s actual end-use conditions.

The brochure specifies 1.5 m/min printing at 720 x 1200 dpi, but finished-label output depends on artwork coverage, data processing, label size, cut-path complexity, drying, lamination, slitting, roll changes and operator workflow. Ask for a timed end-to-end test using a representative production job rather than calculating capacity from print speed alone.

Confirm the usable web width, minimum and maximum label dimensions, roll core size, maximum input and output roll diameter, allowable roll weight, edge margins, minimum slitting width and rewind direction. The brochure confirms a 350 mm maximum print width, but the remaining roll-handling limits should be documented in the quotation against your real material.

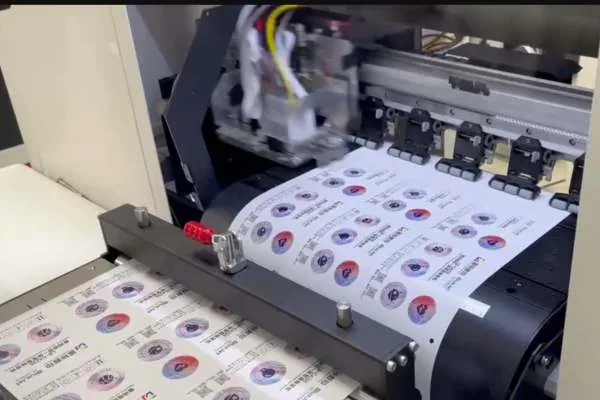

The brochure specifies pigment ink, two Epson I3200 printheads and a 1500 mL automatic ink-supply system, but it does not state the supplied color channels or confirm white ink. Require the quotation to list every installed color, ink model, container size, expected shelf life and any cleaning fluid. If opaque white, spot colors or printing on clear or metallic stock is required, obtain a tested sample and written configuration confirmation before ordering.

The final specification should identify the RIP and production software, included license, supported operating system, computer requirements and accepted artwork and cut-path formats. Test your actual PDF, vector artwork and cut file before purchase, and confirm whether software updates, additional workstations or annual license fees are included.

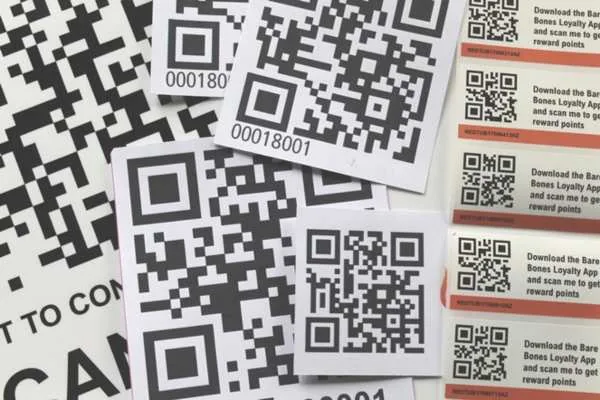

The digital workflow can be used for changing text, serial numbers, QR codes and barcodes. Before ordering, test the intended database or variable-data file, define how records are matched to artwork, and agree the scan and print-quality acceptance criteria. Jobs using GS1 identifiers should also define the required data structure and verification grade.

A meaningful estimate should include ink coverage, roll stock, laminate, blade wear, cleaning consumables, setup waste, matrix waste, electricity, operator time and planned maintenance—not only the machine price. Provide one representative artwork file, label size, batch quantity and annual volume so the test report and quotation can show an application-specific cost model.

The quotation should separately identify the machine configuration, printheads, ink channels, cutting system, drying, lamination, waste removal, slitting and rewinding equipment, RIP and licenses, starter consumables, spare parts, packing, freight, commissioning, training, warranty and payment terms. It should also attach the approved material list and production-test acceptance criteria. Request a documented configuration review.

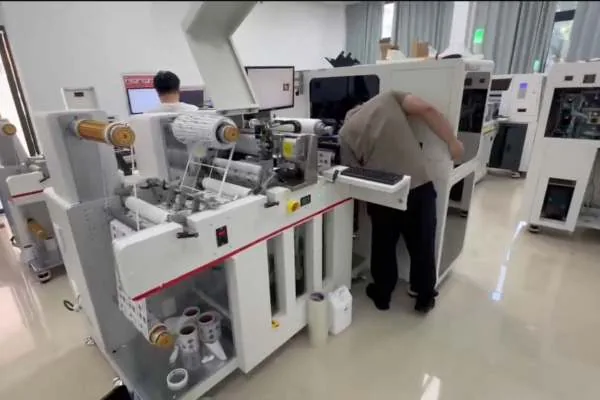

Ask MNT to document the delivery lead time, installation method, operator and maintenance training, warranty period and exclusions, remote-support hours, response targets and recommended spare-parts package. Site preparation should also cover the specified single-phase 220 VAC, 50/60 Hz, 6600 W supply and an 18-28 C, 35%-70% RH operating environment, plus any ventilation or compressed-air requirements confirmed for the supplied configuration.

Compare another solution if your required production speed is substantially above 1.5 m/min, if the job requires an ink configuration such as white or spot colors that has not been confirmed, or if film, foil or specialty media cannot pass adhesion, drying and cutting tests. It may also be unsuitable when the required roll format, automation level or finished-label cost falls outside the documented production test.
