Foam Board Cutting Machine — Clean Edges on Foam Core, PVC & Gatorboard
MNT (MEINAITE) CNC cutters cut foam core, PVC foam board and Gatorboard straight from your artwork — square edges, intact paper liner, no melted face.
- No crushed edge — a cold oscillating blade parts the core without squashing the paper or PVC skin
- Any shape, no die — contour cuts, V-grooves and slots straight from your file
- Print-to-cut registration — a CCD camera follows your printed marks to ±0.1 mm
Clean Cuts on Foam Core, PVC Board and Gatorboard
Foam board punishes the wrong tool. A hand blade wanders and crushes the edge, a laser melts the polystyrene core and yellows the paper face, and a router throws dust and tears the liner. An MNT CNC oscillating knife cuts cold — the blade parts the core and both faces in one clean pass.
From 3 mm paper-faced foam core to 20 mm expanded PVC, one machine contour-cuts, V-grooves and slots display panels ready to mount. Built for signage and display shops; see the full MNT digital cutting machine range.
Cutting printed graphics as well as board? The same machine is bought by print finishers as a flatbed cutter, where the deciding feature is camera registration to the printed sheet. This page stays on the rigid board itself — how paper-faced foam core, PVC board and Gatorboard behave under a knife.
Machine specifications compared. Foam board work is mostly about what happens at the edge, not the depth. A through-cut on 5 mm board is trivial; a clean V-cut fold or a crease that does not crack the liner is not, and those tools are standard only on the C6090. Above a 2500 × 1600 mm sheet the C3232 is the only table that takes the board whole.
| Specification | C6090 | C2516T | C3232 |
|---|---|---|---|
| Cutting area | 600 × 900 / 600 × 1200 / 900 × 1200 mm | 2500 × 1600 mm | 3200 × 3200 mm |
| PVC foam board, honeycomb, rigid foam | ≤ 50 mm | ≤ 50 mm | ≤ 50 mm |
| Corrugated, grey board, KT board | ≤ 20 mm | ≤ 20 mm | ≤ 20 mm |
| V-cut & creasing tools | Creasing standard · V-cut optional | Optional | Optional |
| Milling spindle | — | Standard · 800 W / 1.8 kW / 4 kW | Optional |
| Cutting speed | 300–1800 mm/s | 300–1800 mm/s | 300–1800 mm/s |
| Continuous belt feeding | Yes | Yes | Yes |
| Typical board job | Mounted prints, POS samples | Standard board sizes, mixed work | Oversized board, full-width panels |
Display Boards We Cut

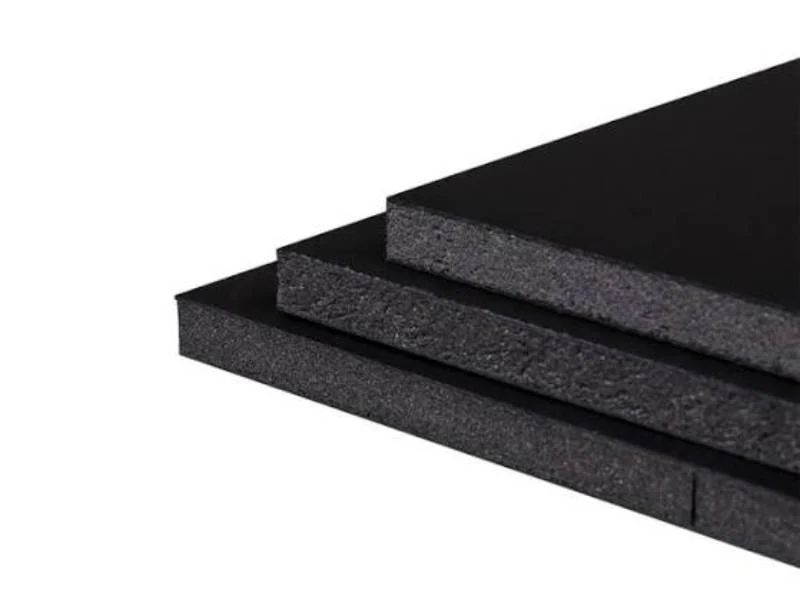

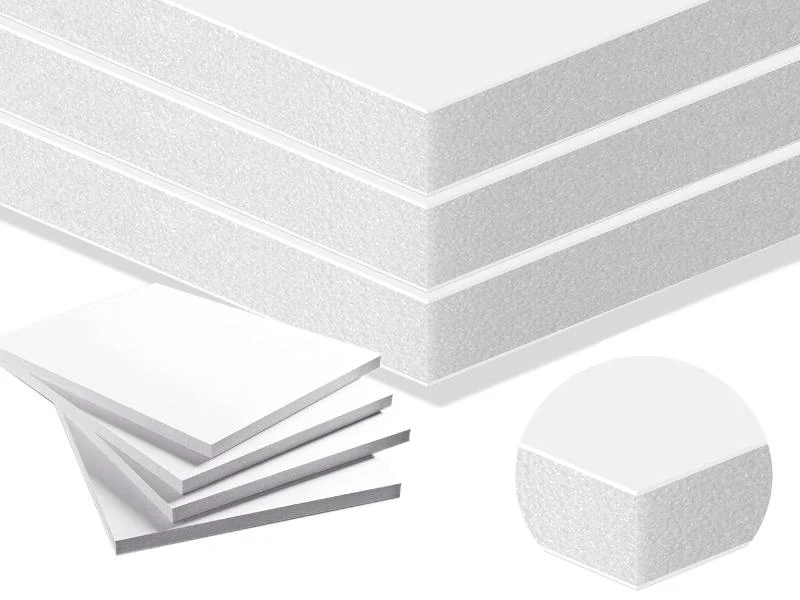

Paper-Faced Foam Core Board
- Formats: Standard 3–10 mm display board, sheets to 1600 × 2500 mm
- Watch out: A dull or hot blade tears the paper liner and leaves a furred edge that shows on a mounted print — and it is the visible edge of the finished piece
- How we cut it: The blade cuts liner and polystyrene core in a single pass, leaving a square edge that mounts flush without sanding

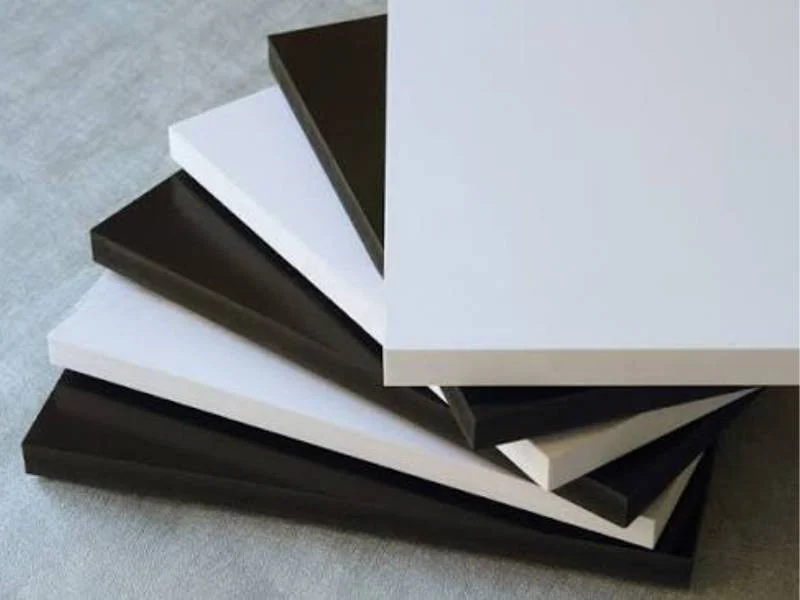

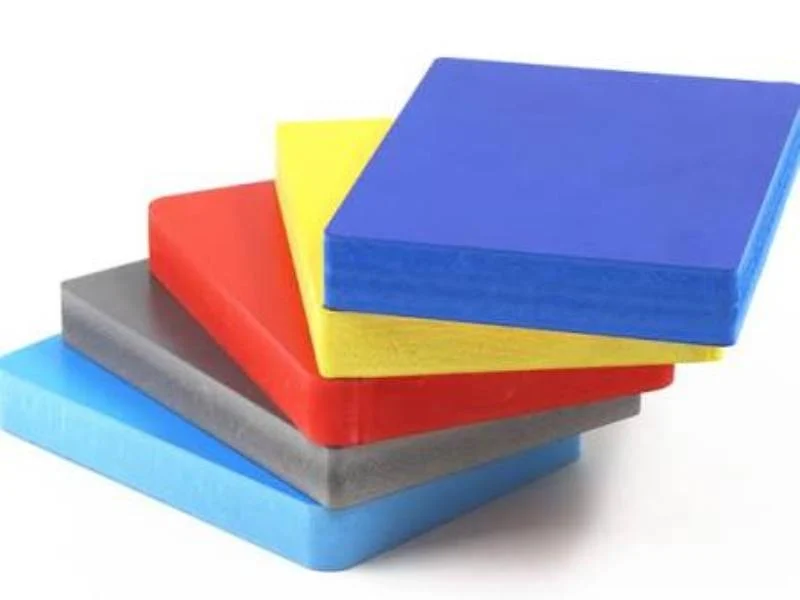

PVC Foam Board (Forex / Sintra)
- Formats: Rigid expanded PVC, 3–20 mm
- Watch out: PVC must never meet a laser — it releases chlorine gas that corrodes optics and frame, and leaves a melted, discoloured cut face
- How we cut it: A cold knife avoids all of it: no extraction upgrade, no fume risk, no discoloured edge

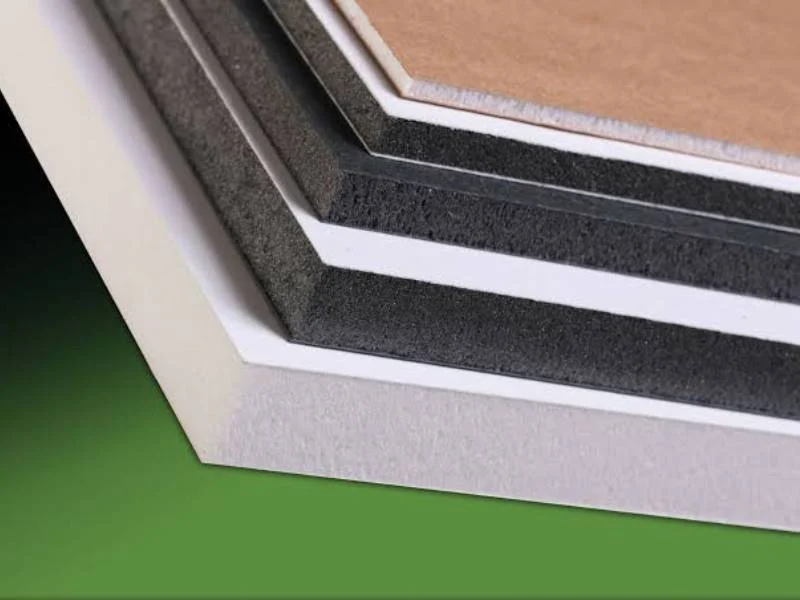

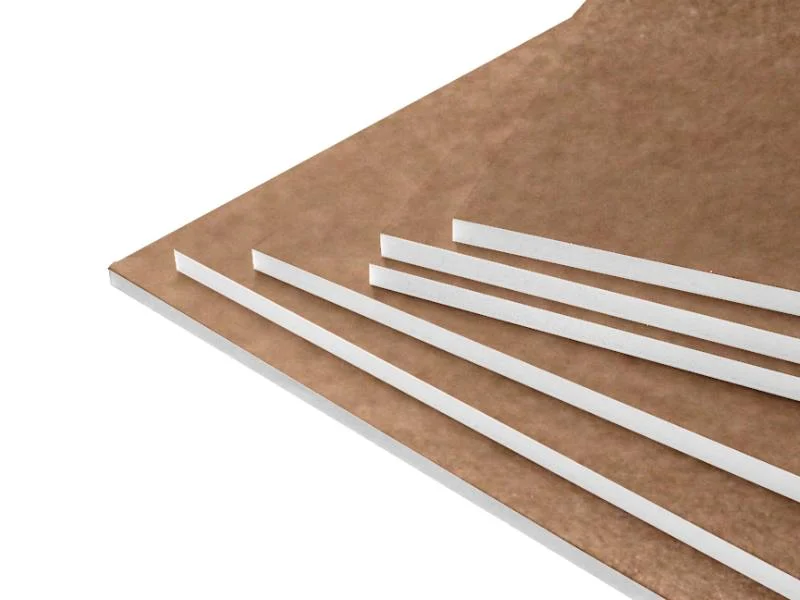

Gatorboard / Gatorfoam
- Formats: Wood-fibre-faced board, 3–25 mm, full 4 × 8 ft sheets
- Watch out: The fibre facing dulls hand blades within a few sheets, so edge quality drifts across a run and the last panels do not match the first
- How we cut it: Carbide oscillating knives hold edge quality across a full sheet and beyond

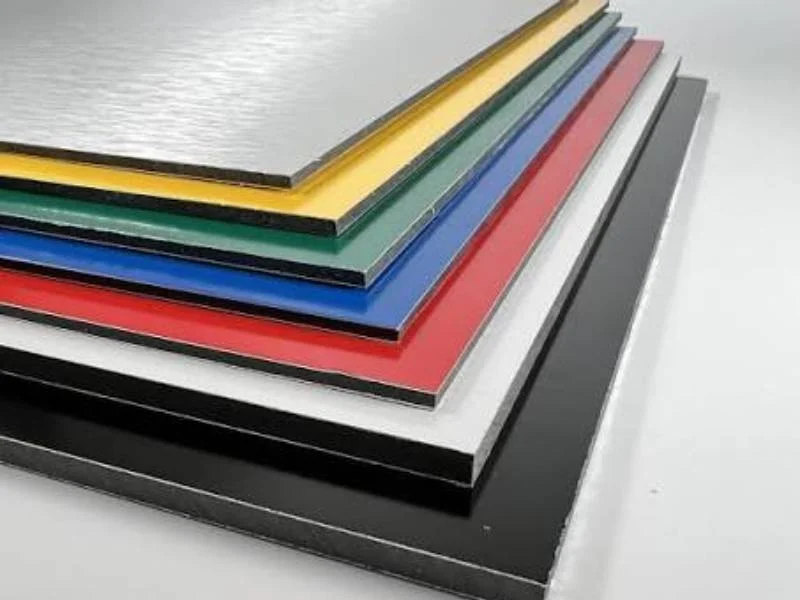

ACM & Composite Panels
- Formats: Aluminium composite and mixed-substrate board, 2–6 mm
- Watch out: A knife cannot cut the aluminium skin, so this job normally moves to a second machine and a second setup — and a second setup is a second registration error
- How we cut it: Switch to the milling spindle in the same setup, on the same datum, without moving the sheet
Thickness ranges and blade settings come from MNT's own test cuts on each board type. Send your stock and we return a free sample cut.
Display and Signage Parts Cut From Foam Board

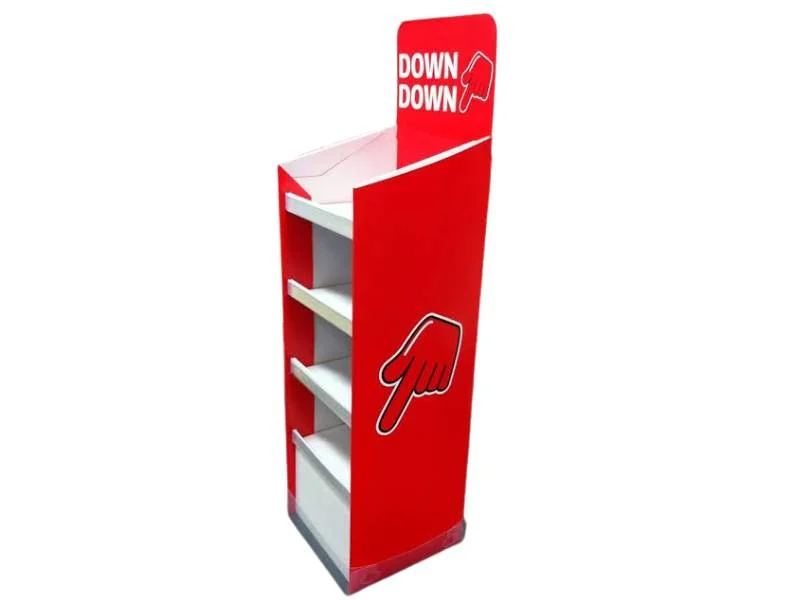

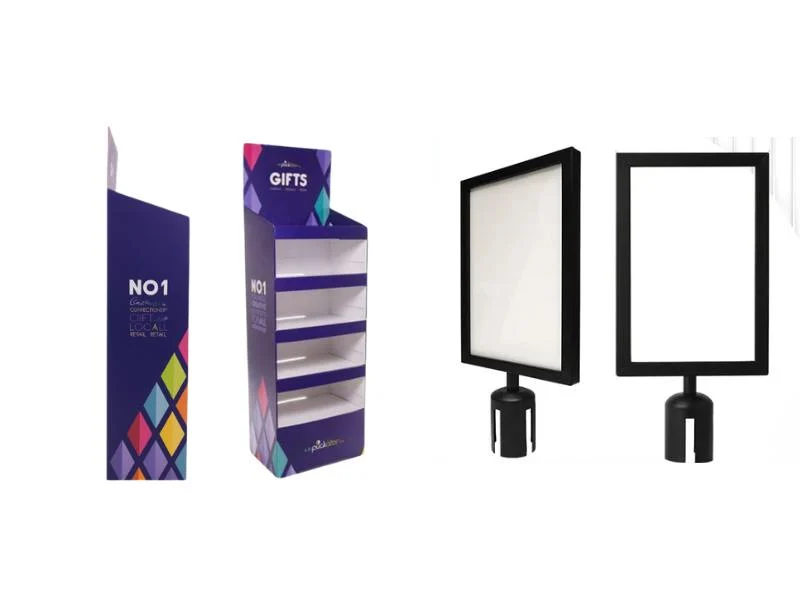

POP Displays & Standees
- Parts: Contour-cut shelf talkers, standees and counter units from printed sheet
- The hard part: POP campaigns are short and shapes change constantly, so any die is obsolete before it earns back its cost
- What you get: One operator turns out 60+ pieces an hour with no die and no setup charge

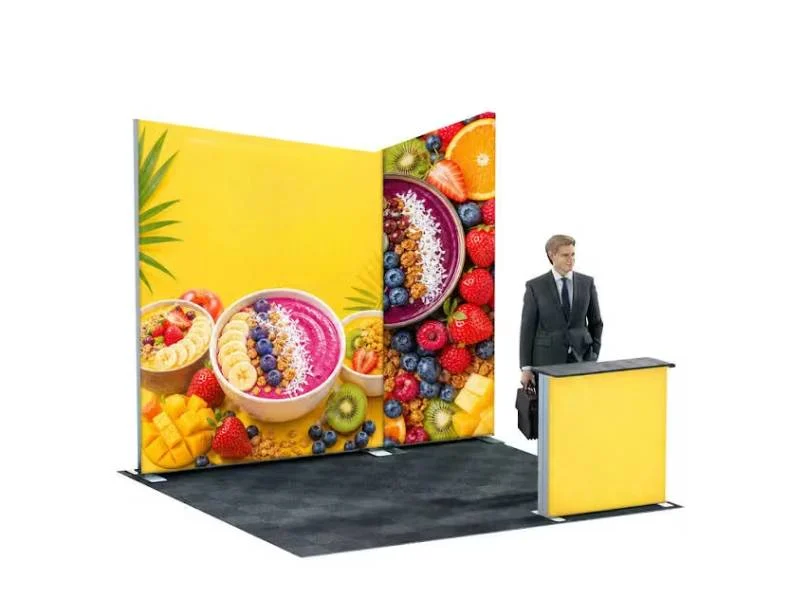

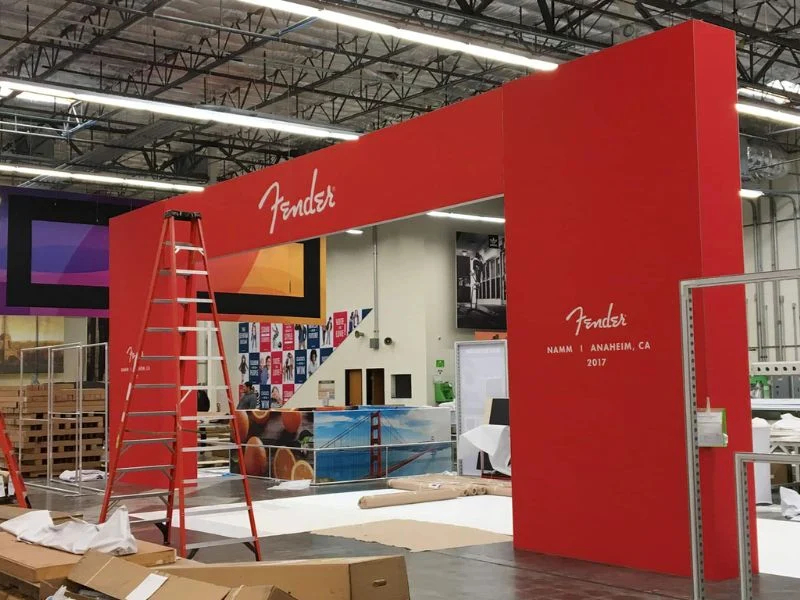

Trade Show Graphics
- Parts: Booth panels and backdrops cut to shape on a 1600 × 2500 mm bed
- The hard part: A full 4 × 8 ft sheet that has to be repositioned mid-cut comes out with a mismatched seam right down the middle of the graphic
- What you get: The whole sheet is cut in one placement — no repositioning, no seam

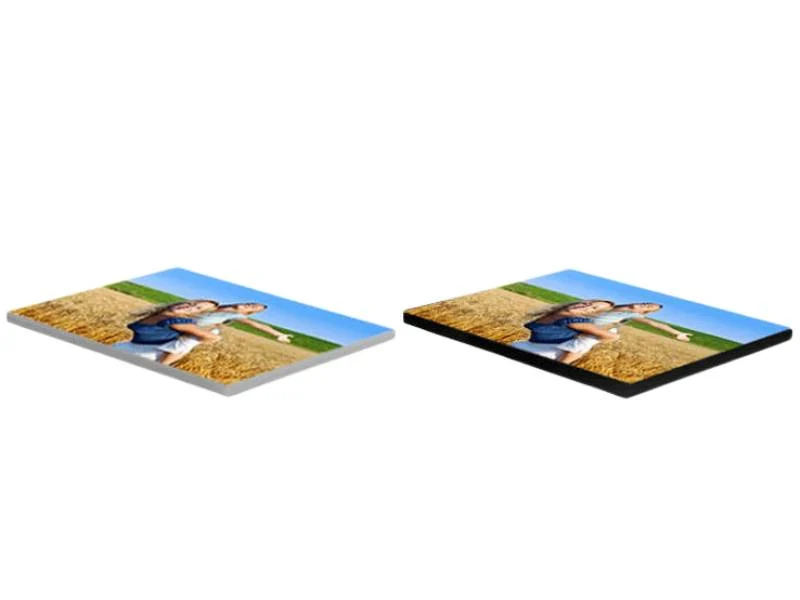

Mounted Prints & Photo Panels
- Parts: Print-to-cut panels following the printed crop marks
- The hard part: If the cut wanders from the print, the image sits crooked in its own border — and on a photo panel that is the entire product
- What you get: Camera registration follows the printed marks to ±0.1 mm on every panel in the run

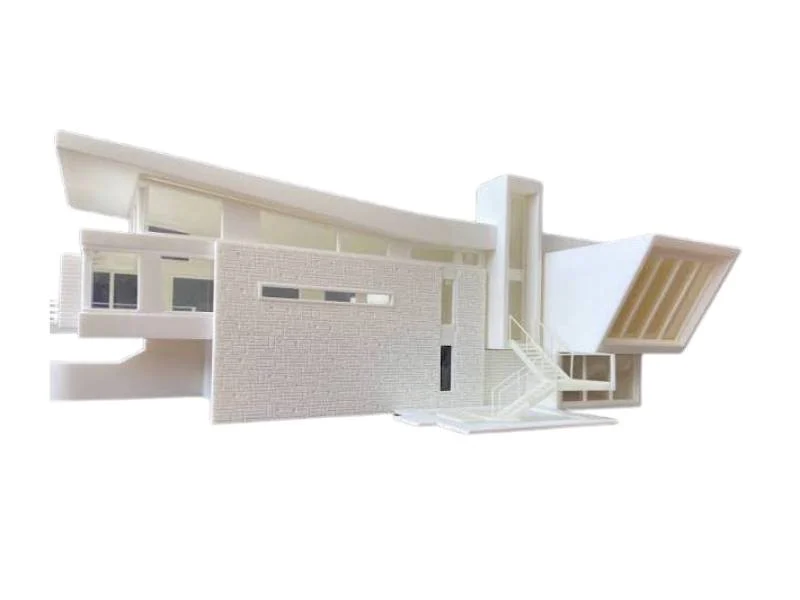

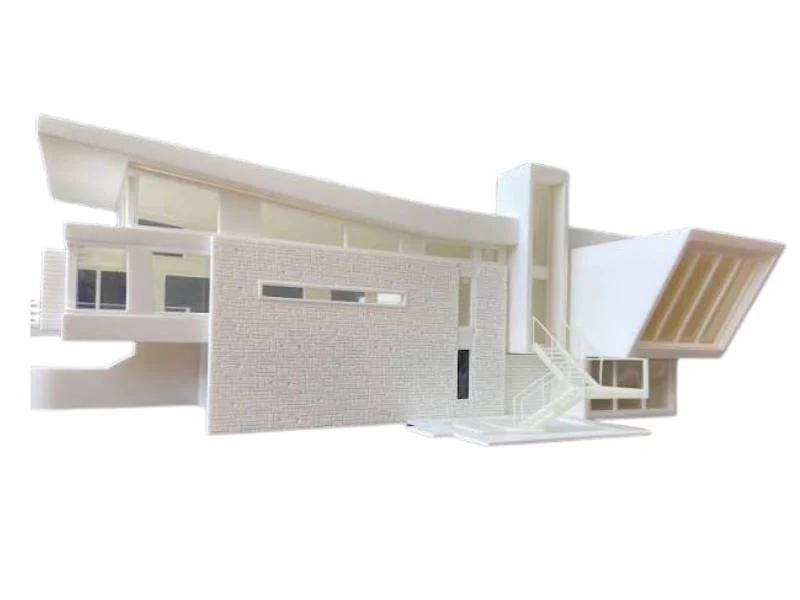

Architectural & Scale Models
- Parts: Walls, facades and massing models folded from flat board
- The hard part: Scoring a fold by hand either cuts through or does not fold straight, and a model with wavy walls is not presentable
- What you get: V-groove and half-cut tooling fold flat board into 3D forms straight from the CAD file
Throughput measured on a C2516T (1600 x 2500 mm bed) running printed sheet, single operator, load and unload included.
Recommended MNT Machines
Board work is cut cold on the C-series digital knife platform. All three share the same tools — pick by the sheet size you handle most.
C2516T Digital Cutting Machine
- Cuts: Foam core, PVC foam board, Gatorboard, corrugated, ACM
- Specs: 2500 × 1600 mm bed · EOT knife + drag tool + 800 W–4 kW milling spindle · ≤ 50 mm
- Best for: Display shops running full 4 × 8 ft sheets and mixed rigid/soft board
- Price: From $16,900
C6090 Digital Cutting Machine
- Cuts: Printed foam board, photo panel, self-adhesive vinyl, thin PVC
- Specs: 600 × 900 / 600 × 1200 / 900 × 1200 mm · EOT + creasing · aluminium honeycomb vacuum table
- Best for: Print shops finishing output next to the press, short runs and samples
- Price: From $12,000
C3232 Digital Cutting Machine
- Cuts: Oversized board, honeycomb panel, wide composite sheet
- Specs: 3200 × 3200 mm square bed · POT pneumatic + EOT knife · belt auto-feeding
- Best for: Panels wider than a standard table — cut whole instead of split and joined
- Price: From $11,555
C-series machines share one platform and tool range; models differ by working size and standard tool head.
Why a Cold Knife Wins on Foam Board
Every other method fails somewhere on foam board. A laser melts the polystyrene core and, on PVC board, releases chlorine gas that corrodes the machine. A router cuts but buries the shop in dust and tears the paper liner. A hand blade is free but never repeatable. A cold oscillating knife is the only tool that cuts every board on this page clean.
| Factor | Hand blade | Laser | CNC router | Oscillating knife |
|---|---|---|---|---|
| Edge on paper-faced board | Wanders, crushes | Melted core, yellowed paper | Torn liner | Square, clean |
| PVC foam board | Slow, skips | Chlorine fumes, melted edge | Heavy dust | Cold, no fumes |
| Repeatability | Operator-dependent | Good | Good | ±0.1 mm, file-driven |
| Print-to-cut | By eye | Camera optional | Camera optional | CCD camera standard |
| V-groove / half cut | Manual, inconsistent | Not possible | Possible, dusty | Dedicated tool, one pass |
| Throughput per sheet | 5–10 min | 2–4 min | 2–4 min | Under 1 min |
Why Display and Signage Shops Choose MNT
Distributor or OEM partner? Territory, spare-parts commitment and technical training are what decide whether a machine is worth carrying. Talk to us about partnership.
Square Edge, Intact Liner
- Cold blade — no melted core, no yellowed paper, no chlorine fumes on PVC
- Edge mounts flush straight off the bed, with no sanding or hand trimming
- For distributors: sign and print shops are the highest-density buyer group in this catalogue — short decision cycles and a mid-range ticket make this the machine that builds your installed base fastest
Print-to-Cut, Not Cut-by-Eye
- CCD camera reads your printed registration marks and cuts to ±0.1 mm
- Compensates for print stretch and skew, so long runs stay square
- For distributors: spare-parts commitment, territory and technical training are the three things that decide whether a machine is worth carrying — all three are set out on our partnership page
One Bed, Board to Composite
- Oscillating knife, V-groove, creasing wheel and milling spindle on one head
- Foam core, PVC board, Gatorboard, ACM and corrugated in the same shift
CE + ISO — Send a Printed Sheet for a Free Board Test
- CE-marked and ISO 9001 certified — built by Hangzhou Chaohan, not traded
- Send your board and artwork; we cut a free sample before you commit
- 12-month warranty, lifetime remote support, spare blades shipped worldwide
CE-marked and ISO 9001:2015 certified. Built by Hangzhou Chaohan Intelligent Equipment, not traded. Certificates on request.
Frequently Asked Questions
What is the best tool to cut foam core with?
A CNC oscillating knife is the best tool for production foam core cutting. It cuts cold, so the polystyrene core never melts and the paper liner stays intact, and it repeats the same shape to ±0.1 mm. A hand blade is fine for one board; past a few dozen pieces the edge quality and the operator both give out.
How do you cut foam core board without crushing the edge?
Crushed edges come from pressing a blunt blade down through the board. An oscillating knife vibrates thousands of times a second and parts the foam instead of pushing it, and the vacuum bed holds the sheet flat so it cannot lift or compress. Set the blade to cut roughly 1 mm into the sacrificial layer and the bottom liner cuts clean too.
Can you cut foam core with a hot wire cutter?
No — a hot wire melts through polystyrene but cannot cut the paper or PVC faces, so it tears the liner and leaves a scorched, ragged edge. Hot wire suits bare EPS/XPS block, not faced display board.
Can a laser cut foam core board?
A laser will cut it, but it melts the polystyrene core into a rounded, glossy edge and yellows the paper face. On PVC foam board a laser is worse than untidy: PVC releases chlorine gas that corrodes the optics and the frame. Both problems disappear with a cold knife.
How thick a board can it cut?
2–30 mm depending on the material — typically 3–10 mm paper-faced foam core, up to 20 mm expanded PVC, and up to 30 mm on soft boards in a single pass. Send a sample sheet and we confirm the exact blade and setup for your stock.
How much does a foam core cutting machine cost?
A production CNC knife cutter for foam board typically runs from around USD 12,000 for a 1300 × 2500 mm single-head machine to USD 30,000+ for a larger bed with camera registration, milling spindle and conveyor feed. Price depends on bed size, tool head count and automation — tell us your sheet size and volume and we quote factory-direct.
Do I need a different machine for corrugated and ACM?
No. The same bed handles corrugated cardboard with a creasing wheel and ACM with the milling spindle. Most display shops run foam core, corrugated and composite panel work on one MNT cutter rather than buying a machine per substrate.
Foam Board Cutting — Technical Guides
Cutting faced board raises real questions — when a knife beats a laser, how to keep the liner intact, and what blade suits which substrate. These guides walk through the decisions.
Oscillating Knife vs Laser Cutting for Leather: Which Should You Choose?
Knife vs laser on edge quality — the same cold-cut argument that decides foam board and PVC.
How to Choose a Leather Cutting Machine: A Buyer’s Guide
What to check before buying a knife cutter: bed size, tool heads, camera registration and support.
Start Your Foam Board Cutting Project
Send your board type and thickness, sheet size and monthly volume — we recommend the right knife cutter and reply within 24 hours.
