Leather Cutting Machine
An industrial CNC oscillating knife cutter for genuine and synthetic leather — built for automotive interiors, bags, footwear and upholstery.
- Cold-cut, scorch-free edges — preserves the natural grain and color of real leather, with none of the burn or smell a laser leaves behind.
- ±0.1 mm precision, up to 6× faster than hand cutting, with repeatable batch-to-batch quality.
- Genuine, PU, PVC & microfiber leather — single-layer or stacked multi-layer cutting.
What Is a CNC Leather Cutting Machine?
A CNC leather cutting machine is an automated flatbed system that uses a high-frequency computer numerical control program to drive an oscillating knife through leather and other flexible sheet materials. The blade vibrates vertically tens of thousands of times per minute, slicing along a programmed path with machining accuracy held within 0.1 mm — replacing manual knives, clicker presses and steel-rule dies for both custom and batch production.
Unlike a laser, the oscillating knife is a cold-cutting process: it leaves no burnt edge, no discoloration and no odor, fully preserving the natural grain and color of genuine leather. That makes it the preferred choice for automotive interiors, bags, footwear and furniture upholstery, where edge quality and material appearance are non-negotiable.
Why an Oscillating Knife for Leather — Not a Laser
Lasers cut leather by burning through it. On genuine leather that means scorched brown edges, a persistent smell and heat-affected color. An oscillating knife cuts mechanically and cold, so the finished edge looks and feels like the material itself.
| Criteria | Oscillating Knife (this machine) | CO₂ Laser |
|---|---|---|
| Edge finish | Clean, cold-cut, true to material | Scorched / darkened edge |
| Color & grain | Preserved | Heat discoloration |
| Smell & smoke | None | Burnt-leather odor, fumes |
| Genuine leather | Ideal | Not recommended (burns) |
| Multi-layer stacking | Yes | Limited |
| Thick / rigid material | Up to ≤50 mm (rigid) | Thin only |
Leather Types It Cuts
Genuine Leather
Cowhide, sheepskin, full-grain and split leather — cold-cut with clean, scorch-free edges for auto seats, luxury bags and footwear.

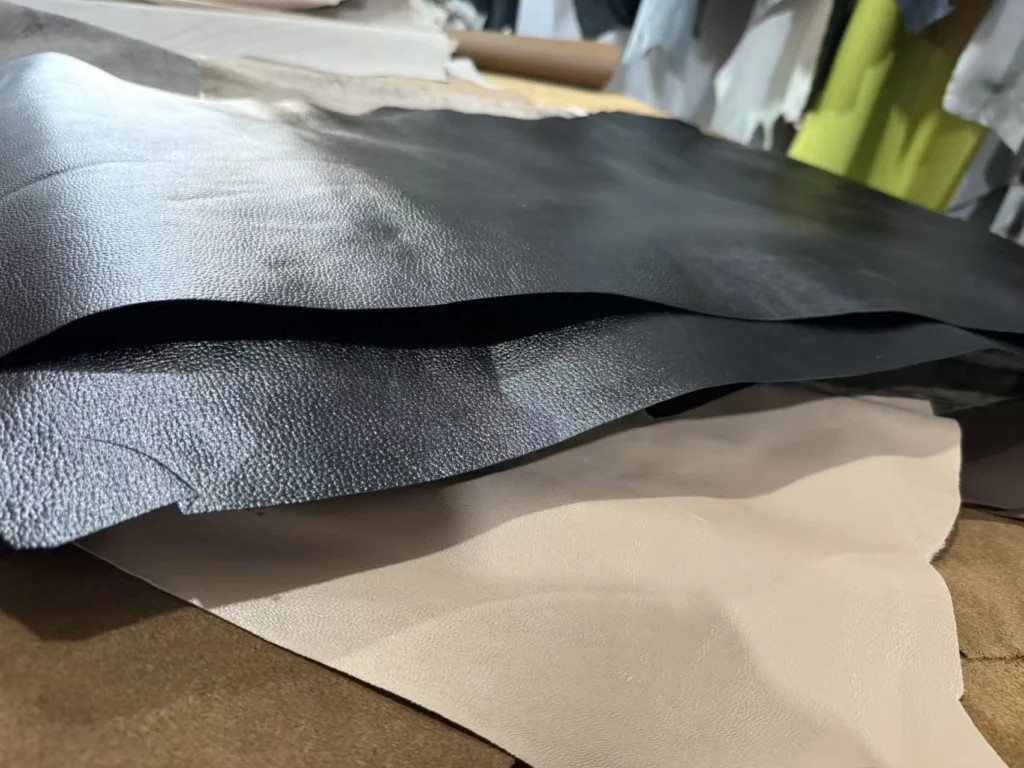

PU Leather
Polyurethane-coated synthetic leather for fashion bags, garments and upholstery.

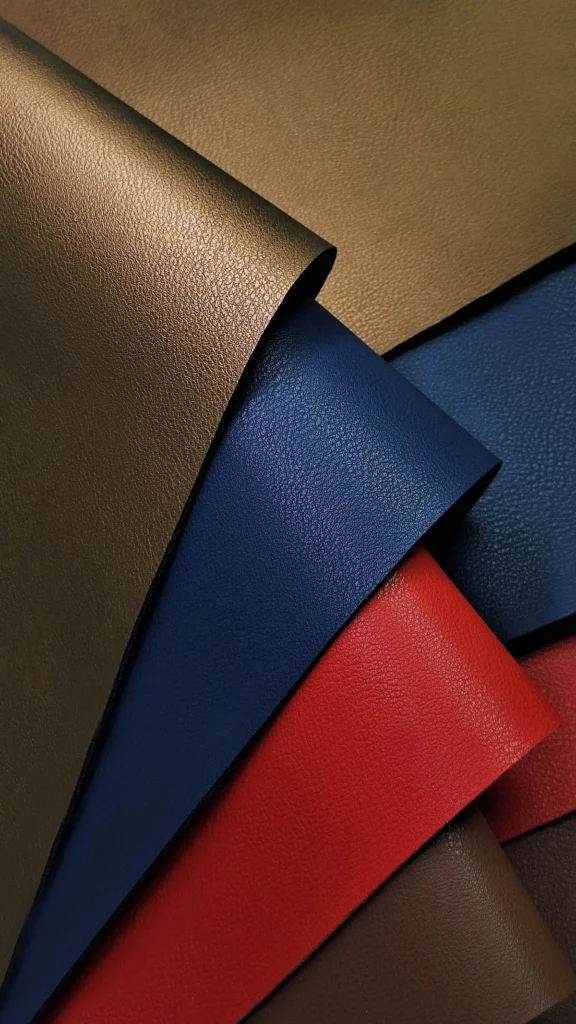

PVC Leather
PVC-coated synthetic (faux) leather for cases, covers and cost-sensitive goods.

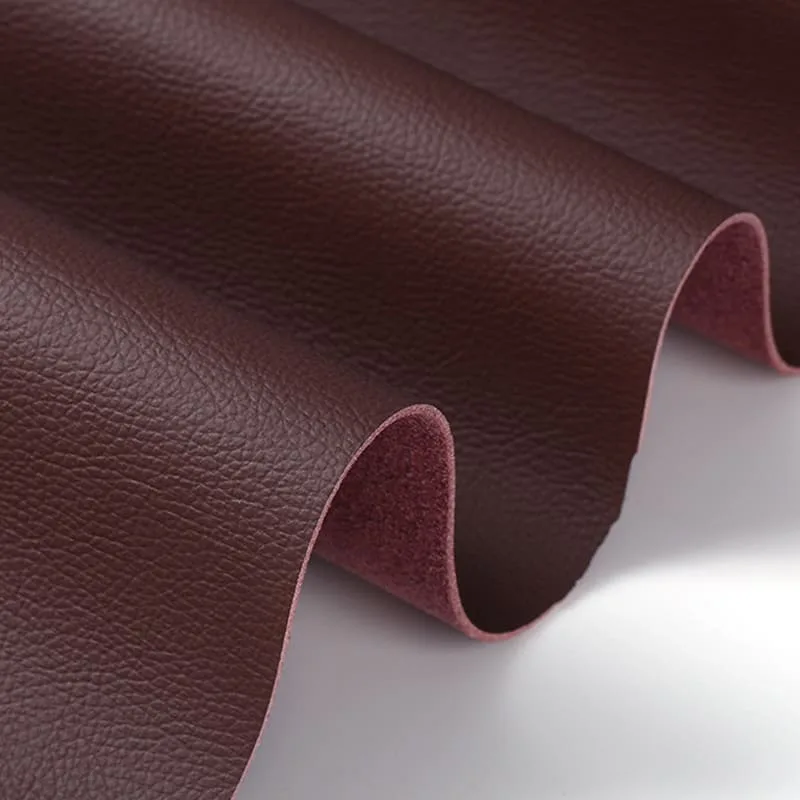

Microfiber Leather
High-strength synthetic microfiber for sports footwear and automotive interiors.

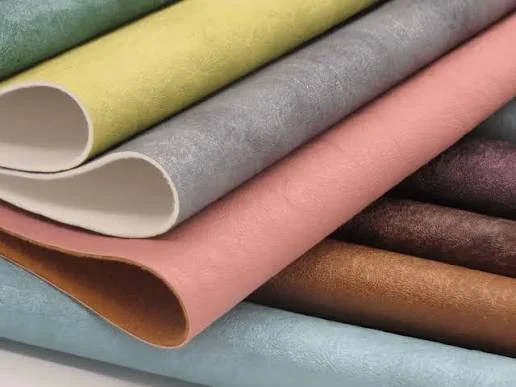

Bonded / Recycled Leather
Reconstituted leather-fiber sheet for linings and budget products.
The same oscillating-knife platform also cuts felt, foam, rubber, EVA, cardboard and non-woven fabric — explore our full range of digital cutting solutions.
Leather Industries We Serve
Automotive Interiors
Seat covers, door panels and dashboards — nested cutting maximizes hide utilization and repeatable quality.
Bags, Footwear & Accessories
Handbags, wallets, shoe uppers and small goods — intricate contours and multi-layer stacks cut cleanly across batches.
Furniture & Upholstery
Sofa and seating panels cut from large hides with edge quality ready for stitching.
Oscillating Knife Cutting, Step by Step
A servo-driven head carries an oscillating knife (EOT/OET tangential tool) over a vacuum-adsorption flatbed. The CNC system controls the cutting trajectory and depth while the blade oscillates vertically at high frequency, slicing the leather without pulling or distorting it. A CCD camera follows printed edges or registration marks for precise contour and print-to-cut alignment, and belt auto-feed advances the material for continuous, roll-to-sheet production.
- Vacuum table holds leather flat and stable during cutting
- Oscillating + drag + router + wheel tools handle everything from soft hide to rigid sheet
- CCD vision for edge-following and printed-pattern registration
- Belt conveyor auto-feed for continuous batch throughput
- Accepts HPGL / PLT / DXF files from standard CAD/nesting software
Choose Your Leather Cutting Machine

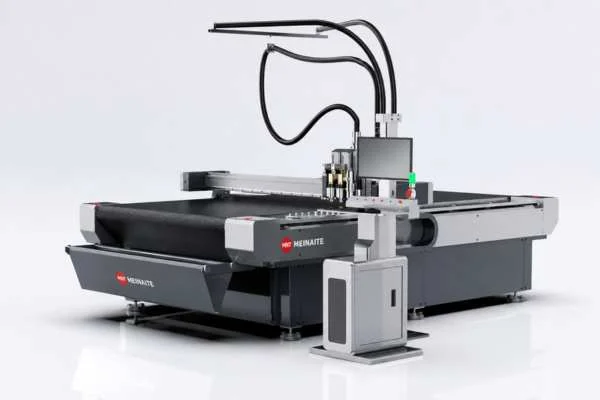

C2516T
2500×1600 mm flatbed digital cutter with oscillating knife, CCD camera and belt auto-feed — our workhorse for leather.
C6090
Compact-format oscillating knife cutter for sampling and small-batch leather work. Configuration built to order.
C3232
Large-format (~3200×3200 mm) custom configuration for oversized hides and high-volume production.
| Specification | C2516T | C6090 | C3232 |
|---|---|---|---|
| Cutting area | 2500 × 1600 mm | ~600 × 900 mm [TBC] | ~3200 × 3200 mm [TBC] |
| Cutting speed | 300–1800 mm/s (by material) | [TBC] | [TBC] |
| Max cut thickness | ≤50 mm (rigid) | [TBC] | [TBC] |
| Tool head | Oscillating (EOT/OET) + drag + router + wheel | [TBC] | [TBC] |
| Drive | Inovance servo + linear guide + rack & belt | [TBC] | [TBC] |
| Table | Vacuum adsorption + conveyor | [TBC] | [TBC] |
| Auto-feed | Belt auto-feed (standard) | [TBC] | [TBC] |
| CCD camera | Standard | [TBC] | [TBC] |
| File formats | HPGL / PLT / DXF | HPGL / PLT / DXF | HPGL / PLT / DXF |
| Software | MNT (nesting optional) | MNT | MNT |
| Warranty | 1 year + lifetime software updates | 1 year | 1 year |
C6090 and C3232 configurations are built to order; contact us for the current specification sheet.
Leather Cutting Machine — Buyer FAQ
How thick of leather can this machine cut?
The oscillating knife cuts soft and genuine leather in a single pass and handles rigid stacked material up to ≤50 mm on the C2516T. Exact depth depends on hardness, blade choice and whether you cut single- or multi-layer — send us your material and we will confirm the setup.
Oscillating knife vs laser for leather — which should I choose?
For genuine leather, choose the oscillating knife. It is a cold-cutting process, so edges stay clean with no scorching, discoloration or burnt smell, and the natural grain is preserved. Lasers burn the edge and are generally unsuitable for real leather. A laser only makes sense for some thin synthetic sheets where an engraved look is acceptable.
Can it cut multiple layers of leather at once?
Yes. For synthetic leather and thinner hides you can stack layers and cut them in one pass, which is common in footwear and bag production. Layer count depends on material thickness and density; we validate the maximum stack during machine testing with your samples.
Which leather types does it handle?
Genuine leather (cowhide, sheepskin, full-grain, split), PU leather, PVC synthetic leather, microfiber leather and bonded/recycled leather. The same platform also cuts felt, foam, rubber and EVA if your production mixes materials.
What CAD files and software does it use?
The machine accepts HPGL, PLT and DXF files and ships with MNT control software; automatic typesetting/nesting to maximize hide utilization is available as an option. It integrates with standard leather CAD and pattern systems.
Do you offer OEM, custom working sizes and after-sales support?
Yes. MNT (Hangzhou Chaohan) supplies custom working sizes and tooling configurations, OEM/private-label options, online and on-site training, a 1-year warranty and lifetime software updates. Tell us your table size, materials and throughput and our engineers will spec the machine.
