Nesting software decides how parts sit on a sheet before the machine ever touches it. A few percentage points of layout efficiency, multiplied across a year of sheet purchases, is usually a bigger line item than the machine itself.

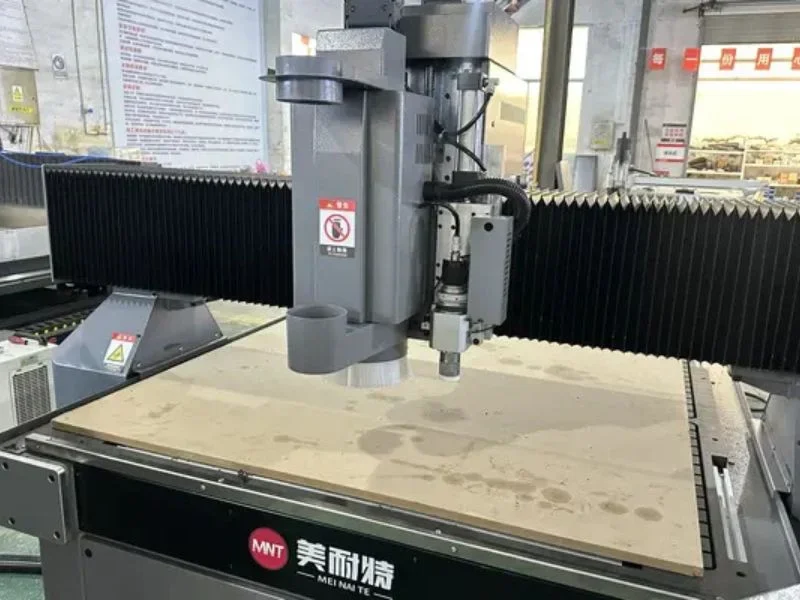

Most shops evaluate a CNC router or digital cutter on speed, accuracy and footprint — and rarely ask what software is arranging the parts before the cut path even runs. That’s a mistake for any shop buying sheet material by the pallet, because the software layer between the design file and the cut file is what determines how much of each sheet becomes finished product versus scrap.
This article walks through how nesting software actually works, why a 5-point yield improvement is worth more than it sounds, and what separates a nesting engine that pays for itself from one that just looks like it does the same job.
What Nesting Software Actually Does
Nesting software solves what’s formally known as the cutting stock problem: it arranges a set of part outlines onto a sheet, panel or roll to minimize wasted material while respecting constraints like grain direction, part rotation limits and minimum spacing between parts. It sits between your CAD/CAM file and the machine’s cut path — you feed it part geometry and sheet dimensions, and it returns a layout, an estimated yield percentage, and the toolpath the machine will actually run.
The output isn’t just a picture of parts on a sheet. A useful nesting engine also reports the yield number itself — the percentage of sheet area actually used by parts — and lets you compare layouts before committing material to the machine. That reporting step is where most of the financial value gets left on the table, because shops that never look at the yield number can’t tell a good nest from a mediocre one.

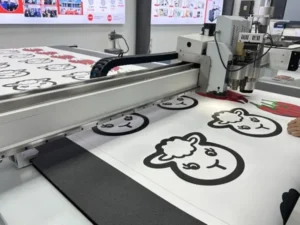

On machines that combine cutting with printing or camera-based registration, nesting also has to account for how the printed sheet or hide will be read by the camera — which is why nesting and vision registration are usually sold as one workflow rather than two separate tools.
How a Few Percentage Points of Yield Turn Into Real Money
A 5-percentage-point improvement in yield is a 5% cut in your sheet material spend — and material, not machine time, is usually the larger cost on panel-heavy jobs. The math is straightforward once you run it against real volume.

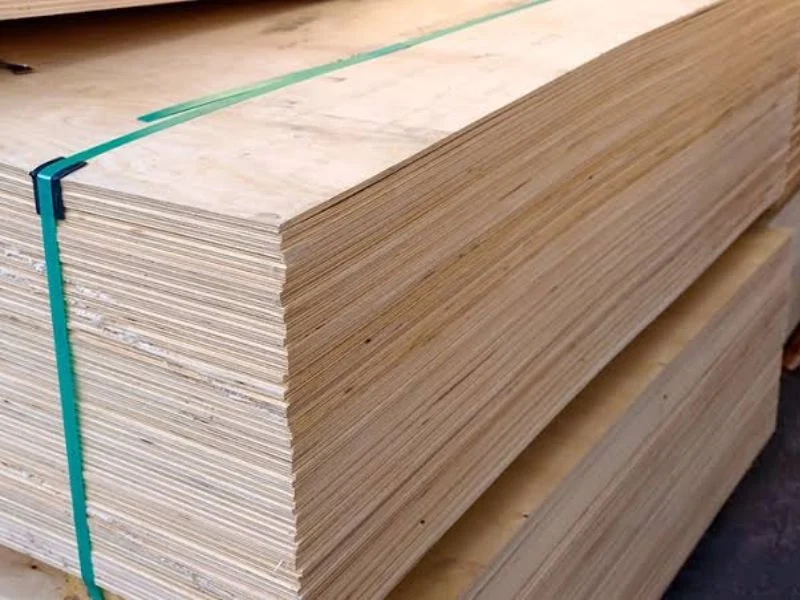

Take a shop cutting 200 sheets of ¾” melamine-faced particleboard a week at $45 per sheet — roughly $468,000 a year in sheet stock. Moving average yield from 78% to 85%, a realistic gap between a basic rectangular nest and true-shape nesting with rotation, doesn’t reduce the sheet cost line directly — it means the same $468,000 in material now produces about 9% more finished parts, or the shop buys about 9% fewer sheets for the same output. Either way, the dollar swing lands in the tens of thousands per year on a mid-size shop, before counting the labor and machine time saved by not re-running scrapped batches.
The number that matters isn’t the yield percentage in isolation — it’s the yield percentage multiplied by your annual sheet spend. A shop buying $50,000 of material a year and a shop buying $2 million a year are looking at very different stakes from the same 5-point improvement, which is why it’s worth running your own numbers before assuming the software layer doesn’t matter.
True Shape Nesting vs Rectangular Nesting
True shape nesting follows the actual part outline; rectangular nesting boxes each part into a rectangle before placing it — and that difference alone typically accounts for most of the yield gap between basic and advanced software. Irregular parts — brackets, curved panels, footwear components, apparel pattern pieces — waste enormous area when boxed into rectangles, because the software can’t tuck one part’s curve into another part’s notch.
| Rectangular nesting | True shape nesting | |
|---|---|---|
| How parts are placed | Bounding box around each part | Actual part contour, including concave edges |
| Best for | Rectangular or near-rectangular parts | Irregular, curved or notched parts |
| Typical yield on irregular parts | 60–75% | 80–90%+ |
| Processing time | Fast, near-instant | Slower — more geometry to evaluate per placement |
| Rotation handling | Usually 0°/90° only | Free rotation, often in fine increments |
Rectangular nesting still has a place — for genuinely rectangular parts like cabinet carcass panels, it’s fast and the yield gap to true-shape nesting is small. The mistake is running true-shape parts, like footwear uppers or bracket kits, through a rectangular engine because the software that came with the machine didn’t offer the alternative.
Grain Direction, Common-Line Cutting and Other Constraints That Cost Yield
Yield isn’t just a geometry problem — grain direction, common-line cutting and minimum part spacing all trade yield for a different requirement, and a nesting engine that ignores them produces parts you can’t actually use.
Grain direction matters on wood veneer, laminate and some textiles, where parts must be oriented along a specific axis for appearance or strength. Locking rotation to respect grain direction reduces the software’s placement options and lowers achievable yield — but ignoring it produces parts that fail quality inspection, which costs more than the lost yield ever would. Common-line cutting, where two adjacent parts share a single cut line instead of each getting its own, can recover several points of yield on parts with straight shared edges, but only if the software supports it and the material tolerates a shared-edge cut.
Minimum spacing between parts — the gap the knife or router bit needs to clear one part without touching the next — is a hard constraint, not a preference. Software that lets you push spacing tighter than the tool’s actual clearance produces a nest that looks efficient on screen and fails on the machine.
Automatic Nesting vs Manual Nesting — When Manual Still Wins
Automatic nesting wins on speed and consistency for high part counts; manual or hybrid nesting still wins for one-off jobs, unusual materials with visible defects, or parts where a human eye catches a better fit than the algorithm.
An automated nesting engine can lay out hundreds of parts in seconds and will do it the same way every time — valuable for repeat production runs where consistency matters as much as raw yield. But automatic nesting struggles with material that has visible flaws — a hide with a scar, a sheet with a surface defect — where a human operator marking the defect zone and nesting around it by eye often beats an algorithm working from clean geometry alone.
The better systems support a hybrid workflow: automatic nesting as the default, with a camera flagging defect zones for the operator to exclude, and manual override available when a specific job calls for it. Buying software that only does one or the other locks you out of whichever jobs don’t fit that mode.
How Nesting Software Talks to the Machine
Nesting software exports a toolpath file — typically G-code or a machine-specific format — that the controller runs directly, so the nest you approve on screen is the exact path the knife or spindle follows. This is worth confirming before buying: some nesting packages produce a layout but require a separate CAM step to generate the actual cutting path, adding time and a place for errors to creep in between the two files.
On machines with camera-based registration, the exported file also needs to carry the positioning data the camera will use to align the nest to a printed sheet or an irregular hide. If the nesting software and the machine’s control software come from different vendors, confirm this handoff works before committing to either — a mismatch here is a common reason shops end up re-nesting manually despite owning nesting software.
Most CNC router, digital cutting and knife-cutting platforms — including the machines covered on our cabinet making CNC machine page — pair a specific nesting package with the controller, so the practical question is usually less “which nesting algorithm is best” and more “which nesting software actually talks cleanly to this controller.”
Reading a Yield Report Correctly
A yield report’s headline percentage only means something next to your material cost and your part mix — the same 82% yield can be excellent on one job and mediocre on another. Before comparing yield numbers across jobs or software packages, check what’s actually being measured.
Confirm whether the reported yield includes or excludes the sheet’s unusable border and any defect zones marked by the operator — software that excludes a wide unusable margin from the denominator will report a higher percentage than software that counts total sheet area, for the identical physical layout. Also check whether the number is per-sheet or averaged across a run; a single sheet can hit 90% while the run average sits at 80% because of how remnant pieces at the end of a batch get handled.
The most useful habit is tracking yield by part family over months, not judging any single job in isolation. A drop in average yield on a part family you’ve cut for a year is a much stronger signal — of a material change, a software setting drift, or an operator override becoming habitual — than any one job’s number on its own.
Frequently Asked Questions
How much yield improvement can nesting software realistically deliver?
Moving from basic rectangular nesting to true-shape nesting with rotation typically recovers 5–15 percentage points on irregular parts, less on parts that are already close to rectangular. The exact number depends heavily on part geometry — run a test nest on your own parts before assuming a figure from another shop’s material.
Does better nesting software slow down production?
True-shape nesting takes longer to calculate a layout than simple rectangular nesting, but on most modern controllers that’s seconds to low minutes, not a production bottleneck. The time cost is in calculation, not in the machine’s actual cutting speed.
Can nesting software account for material defects automatically?
Only with camera-based defect detection feeding the nesting engine — otherwise defects have to be marked manually before nesting. Hybrid systems that combine automatic nesting with operator-marked defect zones handle this better than either fully automatic or fully manual nesting alone.
Is common-line cutting worth using if my software supports it?
It’s worth testing on parts with long straight shared edges — cabinet panels and similar rectangular parts are good candidates. It’s rarely worth forcing on irregular or curved parts, where the yield gain is small and the risk of an inconsistent shared edge is higher.
Why does my yield report show a higher number than the layout looks like it should?
Check whether the report excludes the sheet’s unusable border or any marked defect zones from the total area used to calculate the percentage — that alone can shift the reported number by several points versus a layout that looks identical on screen.
Does nesting software need to match the machine brand?
Not necessarily, but the export format has to be one the controller reads directly without a manual conversion step — confirm that handoff before buying software separately from the machine.
